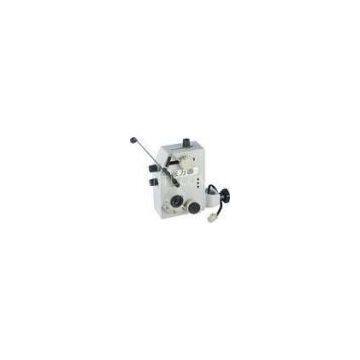

Compact Electronic Wire Tension With 5m / s
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
5m / s Electronic Wire Tensioner Device For Wire Jump Prevention
-
Compact Coil Winding Electronic Wire Tensioner With 0.03 0.09 mm METS
-
METSS Coil Winding Electronic Wire Tensioner Device With Compact
-
Coil Winding Electronic Wire Tensioner For Wire Jump Prevention
-
5m / s Coil Winding Servo Wire Tensioner
-
Servo Wire Tensioner For Coil Winding Machine
Product Details
| Brand Name | KIMCHEN | Place of Origin | China | |
Product Description
Design:Compact?and?Solid Power: DC24V Coil?Winding?Tensioner Electronic?Tensioner?RM?Series electronic?tension?device
Compact Electronic Wire Tension With 5 －60 g Tension Range
?
|
Place?of?Origin: |
Dong?Guan?China |
|
Brand?Name: |
KIMCHEN |
|
Model: |
MET?Series |
|
Feature: |
Control?System?are?packed?within?the?body |
|
Design: |
Compact?and?Solid |
|
Tension?test?condition: |
Wire?speeding?5m/s?refer?roundness?Bobbin |
|
Power: |
DC24V |
|
Electric?Current: |
1.2A |
|
Product?Size: |
140mm*140mm*45mm |
|
Weight: |
0.56KG |
Detailed Product Description:
MET Series Electronic Tensioner is by integrating the electronic system and non-contact breaking design, there is barely any contact in the core mechanism of the main tension, wheel, except the connecting bearing .This combination provide smooth, stable and consistence tension, even in high speed winding. The non contact designs also reduce wear and tear of most of the critical components as to cut down maintenance cost. All MET comes with “ Auto Tension Fine Tuning System”. By sensing the movement of the tension arm, the control system will fine tuning the tension automatically.
Control system are packed within the body.
MET Series is solid and compact in design. It operates with DC24V electronic power.
MET Series also comes with wire jump prevention and wire breakage detection.
MET Electronic Tensioner
Specifications
?
|
Model |
Tension?Range?(g) |
Applied?wire?diamiter(mm) |
|
METSS |
3?。?5 |
φ0.02－φ0.04 |
|
METS |
5?。?0 |
φ0.03－φ0.09 |
|
METM |
50?。?40 |
φ0.08－φ0.20 |
