Home > Products > New product > Sell Metalized Polyester Film Box Capacitor

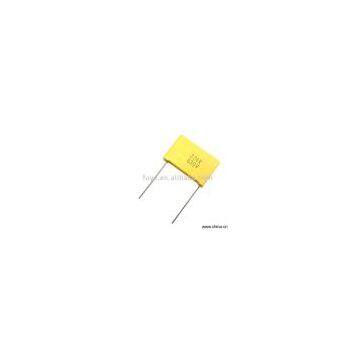

Sell Metalized Polyester Film Box Capacitor
Negotiable
/ Piece
500 Pieces(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
Product Origin:China
Brand Name:LMG
Price Terms:FOB, CIF, CFR
Payment Terms:T/T, L/C
Certification:CE, CQC, UL, TUV
Description:Product Name: Metalized Polyester Film Box CapacitorModel Number: CLX2, CL22, CL23Place of Origin: ChinaThey are constructed with metalized polyester film as medium and electrode, unilaterally drawn out, wrapped up and sealed with epoxy resin and flame-retardant plastic, with strong anti- jamming, high reliability, high temperature-resistance, strong anti-humidity, self-healing property and good safety protection function. Specifications: 1) Operating temperature: -40 - +85°C 2) Capacitance range: 0.001μF - 4.7F 3) Capacitance tolerance: J (±5%); K (±10%) 4) Rated voltage: 63V, 100V, 250V, 400V, 630V 5) Withstand voltage: 1.6UR2S (1.5UR5S) 6) Dissipation factor: ≤0.011kHz 7) Insulation resistance: a) C≤0.33μF UR≤100V≥15,000mΩ b) UR>100V≥30,000mΩ c) C>0.33μF UR μ100V≥5,000S d) UR>100V≥10,000S
Contact Us
- Taizhou Fuye Electronic Co., Ltd.
- Contact nameMr. Ken Chat Now
- Phone86-576-2333933
- AddressLuqiao Plastic Industrial Zone, Taizhou City, Zhejiang Province. China, Binzhou, Shandong
