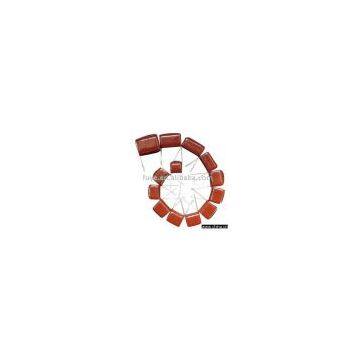

Sell Metallized Polyester Film (MEF) DC Capacitors
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
Product Origin:China
Brand Name:LMG
Price Terms:FOB, CIF, CFR
Payment Terms:L/C, T/T
Certification:CE, CQC, UL, VDE
Description:Features: CL21 metallized polyester film DC capacitor is constructed with metallized polyester film as medium and electrode, unilaterally drawn out, wrapped up and sealed with flame-retardant dielectric materials, with high reliability, high temperature-resistance, small volume, large capacitance and good self-healing performance. Specifications: 1) Operating temperature: -55oC ~ +105oC 2) Capacitance range: 0.001μF ~ 22μF 3) Capacitance tolerance: J (±5%); K (±10%) 4) Rated voltage: 100/160V, 250V, 400V, 630V (DC) 5) Withstand voltage: 1.6UR2S (1.5UR5S) 6) Dissipation factor: ≤0.01, 1kHz 7) Insulation resistance: a) C≤0.33μF: i) UR≤100V: one grade ≥15,000mΩ; two grade ≥3,750mΩ ii) UR>100V: one grade ≥30,000mΩ; two grade ≥7,500mΩ b) C>0.33μF: ii) UR≤100V: one grade ≥5,000s; two grade ≥1,250s ii) UR>100V: one grade ≥10,000s; two grade ≥2,500s
