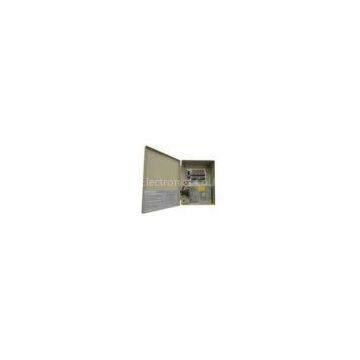

12V CCTV Power Supplies , Surveillance Cameras Power Supply 60W

??????????? Model

12VDC5A9P

Power

60W

Metal Case Dimension

24.5×20.8×8.7cm

Net Weight

2kgs

Input

Input Voltage

88-264VAC

Input Voltage Frequency

50Hz-60Hz

Average Input Current

100Vac≤1.0A

Efficiency

≥80%

Output

Output Voltage

12VDC±5%

Output Current

5A, 9 channels for 9 sets load

Output Ripple Noise(Vp-p)

80mVp-p@25℃/

Rated input voltage & Rated output load

Reply Time of Starting up

≤3S? Input 100Vac, Rated output load

Fuse

Type /Rating

PTC? 1.1A/60V

Protection

Over Voltage Protection

When over voltage occurs, it will switch to self-protection status to protect the load.

Over Current Protection

When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

Short-circuit Protection

When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

Circumstances

Working Temperature

0℃-+50℃

Storage Temperature

-20℃-+80℃

RH

20%-90%

Heat Release

Natural heat dissipation

Connection

Input

Three-pin socket

Output

9 channels output

Dielectric Strength

Input to output

1500Vac/60S? leakage current≤1.5mA

Input to FG

1500Vac/60S? leakage current≤2.0mA

FG
