RF CCTV BNC Connector with 50 Character Impedance , Male Connector

1.Gender:male

2.Application:RF

3.Character Impedance:50Ω

4.Frequency Range:0~3GHZ

5.Contact Resistance:center conductor≤1.5mΩ; outer conductor≤1mΩ

6.Insulation Resistance: ≥5000MΩ

7.Disengage Force:≥0.6N

8.Supply Type:OEM

RF CCTV BNC Connector with 50Ω Character Impedance , Male

Description:

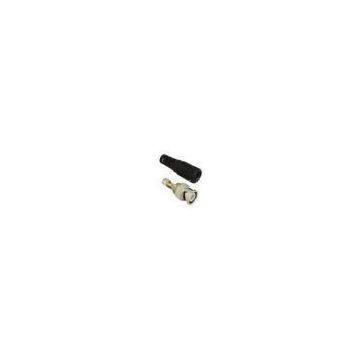

CCTV BNC Male Solderless Connector with Boot

Material:?

Body—zinc alloy, nickel plated

Center pin—copper, gold plated

Boot-—rubber

Net Weight: 11g/piece

Features:

Temperature range: - 40~ +155

Insulation resistance: ≥5000MΩ

Character impedance: 50Ω

Frequency range: 0~3GHZ

Disengage force: ≥0.6N

Contact resistance: center conductor≤1.5mΩ; outer conductor≤1mΩ

Durability: ≥ 500

Application:

The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).

We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.
