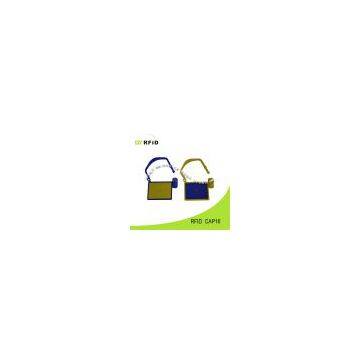

RFID lock tag is used for inventory management like document cabinet, filling cabinet (GYRFID)

RFID lock tag is designed for important and security goods keeping in cabinets. It is fixed by one time and can’t be used after cutting. Management staffs can use the scanner to catch the information from this RFID lock tag and know which document or goods inside. It will be helpful to prevent the goods loss and daily checking.

Features:
Material: PP
Operating temperature: -30°C to + 85°C
Storage temperature: -35°C to + 95°C
Color options: Yellow/ blue/ green/ blue
Dimension:
CAP15: 35x25xT2.5mm, Tie length 163.5mm, thickness 2.5mm.
CAP16: 44x32xT3.0mm, Tie 48.3x30mm, thickness 3.0mm.
Tensile Force:
CAP15: 160N-170N; CAP16: 140-160N
Locking Force:
CAP15: 130-140N; CAP16: 160-170N

Chip: G2XM (others can be customized)
Frequency: 915MHz
Protocol: ISO18000-6C
Operation distance: 3-4m, 0.2m upon handheld reader.


Personalization Support:
Silk-screen printing with logo or Number/ Laser logo or Serial Number / Chip encoding

Application:
Document cabinet management/ clothing locker /product cabinet etc

About GYRFID
GYRFID is a leading supplier of smart cards and RFID tags products for global System Integrators and distributors. It offers a wide range of products embedded with contact chip and contactless chip (LF, HF, UHF), which encapsulated into variety shapes like ISO Card, key fobs, wristband, disc tag, laundry tag. The products are widely applied in access control, payment system, inventory control, asset tracking, industrial managements. GYRFID also welcome OEM service and personalization to create value for the sponsors.
