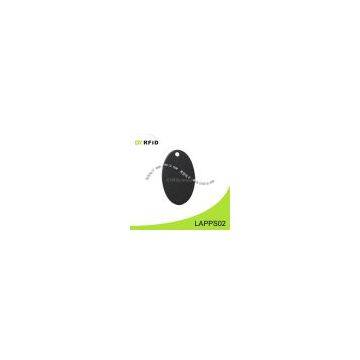

UHF Laundry Tag with hole, reach up to 2m (GYRFID)

LAPPS02 RFID Laundry tag is specially designed for laundry chain management in UHF GEN2 system, which could reach up to long range reading distance. RFID Laundry tag is made of PPS and polyester material, resistant of high temperature and harsh environment. It is particularly used in linen management and laundry chains. LAPPS02 is with one hole,can be affixed by sewing, gluing, be pinned or tied on.

Features:

Material: PPS

Housing: Injection molding + Ultrasonic Welding

Dimension: 40x20x2.2

Protection Class: IP 68 (condition: water pressure 45bar, 10h)

Storage temperature: -25oC to 90oC

Operating temperatures: -25oC to 120oC | +140oC total 1 Hrs | peak value 285celsus degree

Chip: Alien Higgs 3

Standard: ISO18000-6C EPC Class 1 Gen2 Standard

Operating frequency: 860-960Mhz

Memory: >=96bits

Operating distance: 2-3meter

Personalization Support:

Silk-screen printing with logo/ Ink-jet printing or Thermal transfer printing or Laser process of Serial Number / Chip encoding / Laser Logo / Rings or thread is optional

Application:

Laundry Chain / Linen Mangement / Apparel management

About GYRFID

GYRFID is a leading supplier of smart cards and RFID tags products for global System Integrators and distributors. It offers a wide range of products embedded with contact chip and contactless chip (LF, HF, UHF), which encapsulated into variety shapes like ISO Card, keyfobs, wristband, disc tag, laundry tag. The products are widely applied in access control, payment system, inventory control, asset tracking, industrial managements. GYRFID also welcome OEM service and personalization to create value for the sponsors.
