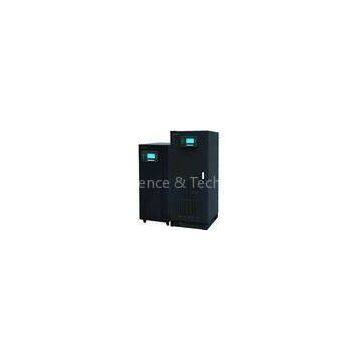

ECO Mode, EPO, IGBT RS232 and RS485 Standard Low Frequency Online UPS 4KVA 220V

Model

MP1101K

MP1102K

MP1103K

MP1104K

MP1106K

MP1108K

MP1110K

MP1115K

MP1120K

Working? WAVE

Pure sine wave? on line

Phase

Single phase+N+G

Input Power factor

>0.80

Rectifier

Input voltage

220Vac; 230Vac; 240Vac( option 110Vac, 120Vac, )

Range

±25%

Input frequency

50Hz±10%;60Hz±10%;

Input THD

<2%

Soft startup

0～100% 5sec

Charge

Charge mode

constantcurrent to constantvoltage, with temp compensation; with Auto change

Float voltage

55VDC

220VDC

Temp. compensation

3mV/ 1 pcs

Charge current

6Amp ( option 20Amp)

Battery

Battery type

maintenance-free lead acid battery

Battery capacity

7～999AH settable (according to the capacity)

Battery number

4pcs 12V

16pcs 12V

Inverter

Phase

1 phase

Rated capacity

Rated capacity ×0.8

Output Voltage

220Vac; 230Vac; 240Vac ( option 110Vac, 120Vac, )

Output voltage distortion

±1 %( Stable? load); ±5%( fluctuant load)

Freq distortion

50Hz 60Hz<±0.5%

crest factor

>3:1

Output THD

Sine wave , linear load<3%;non-linear load<5%

Dynam
