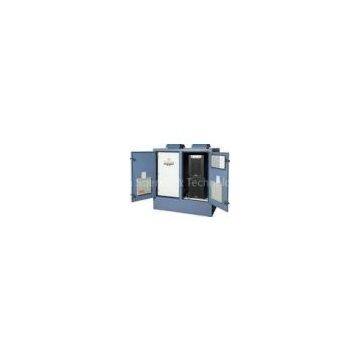

IEC61000 Water-proof IP55 240VDC1000KVA / 8000W 260V Mist Erosion Outdoor UPS
- T/T L/C D/P D/A
- 7 days
You May Like
-
1000KVA / 8000W Load 4A 50hz Outdoor Smart Computer Ups for Outside Communications
-
Large LCD N + N Online 50Hz 4.2A 240VDC 10KVA / 8000W 110V UPSGB7260, IEC62040-2
-
10KVA / 8000W 110V Rack Mount Ups Power Supply Charging Current Value to Computer HP9116B
-
THDI Rack Designs 3KVA / 2700W , Non - Linear Load 110V UPS HP9117C I / O Voltage
-
ABM Technology Non Critical 1KVA / 900W 110V UPS With AS400 Card for Data Loss HP9117C
-
HP9330C High Frequency Three-phase 3ph in / Out 4 Line 110V Backup UPS Power 20KVA / 16KW
Product Details
| Brand Name | Mengda | Place of Origin | China | |
Product Description
Certification:CE, QS, CCC
?IEC61000? water-proof? IP55 240VDC1000KVA / 8000W 260V mist erosion Outdoor UPS
Key Features
SORO Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.
Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.
?
Applications
This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 ° C) / low temperature (-40 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.
Technical Specifications of Outdoor UPS HW9110E Series
|
Model |
HW9110E? 1-10KVA |
||||
|
1KVA |
2KVA |
3KVA |
6KVA |
10KVA |
|
|
Capacity |
1KVA/800W |
2KVA/1600W |
3KVA/2400W |
6KVA/4800W |
1000KVA/8000W |
|
Nominal voltage |
220/230/240VAC |
||||
|
Nominal frequency |
50/60HZ |
||||
|
Input |
|||||
|
Voltage Range |
115～295VAC(±3VAC) |
176～297VAC(±3VAC) |
|||
|
Frequency Range |
50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) |
||||
|
Power Factor |
0.98 |
||||
|
Output |
|||||
|
Voltage Precision |
220/230/240X (1±2%)VAC |
||||
|
Frequency Precision |
50/60HZ±0.05Hz |
||||
|
Power Factor |
0.7/0.8(optional) |
||||
|
Wave Distortion |
Linear load ＜3%??????? Non-linear load ＜6% |
||||
|
Overload capability |
Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. |
||||
|
Crest factor |
3:1 |
||||
|
Transfer Time |
0ms(AC to DC ) |
||||
|
Battery |
|||||
|
DC supply voltage |
36VDC |
96VDC |
96VDC |
240VDC |
240VDC |
|
Charge current |
4A/8A(optional) |
4A/8A(optional) |
4A/8A(optional) |
4.2A |
4.2A |
|
Internal battery capacity |
(38/65/80/100AH)optional |
||||
|
Panel display |
|||||
|
LCD |
D |
