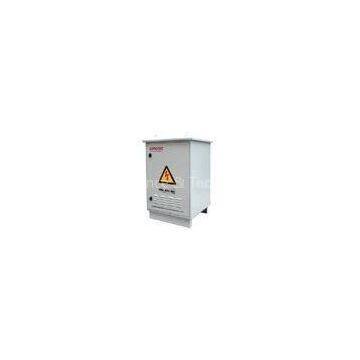

High Performance Integrated Outdoor UPS HW9110E Series 1KVA / 800W, 2KVA / 1600W
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Temperature Resistant High Frequency Outdoor UPS Online 3KVA / 2400W, 6KVA / 4800W
-
Double - Conversion Uninterruptible High Power 0.7 Factor Outdoor UPS 3KVA / 2400W
-
High Performance Integrated Outdoor UPS HW9110E Series 1KVA / 800W, 2KVA / 1600W
-
Pure Sine Wave AC Power 1KVA / 800W Outdoor Industrial UPS Power Systems With LCD Display
-
GB4943 Waterproof Online Design 240VAC High Frequency Outdoor UPS 6KVA / 4800W System
-
Solar Online GB7260.2, IEC62040-2 Outdoor UPS 6KVA / 4800W, 1000KVA / 8000W Manufacturers
Product Details
| Brand Name | Mengda | Place of Origin | China | |
Product Description
Certification:CE, QS, CCC
High performance integrated Outdoor UPS HW9110E Series 1KVA / 800W, 2KVA / 1600W
Key Features
Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.
SORO Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.
?
Applications
This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 ° C) / low temperature (-40 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.
Technical Specifications of Outdoor UPS HW9110E Series
|
Model |
HW9110E? 1-10KVA |
||||
|
1KVA |
2KVA |
3KVA |
6KVA |
10KVA |
|
|
Capacity |
1KVA/800W |
2KVA/1600W |
3KVA/2400W |
6KVA/4800W |
1000KVA/8000W |
|
Nominal voltage |
220/230/240VAC |
||||
|
Nominal frequency |
50/60HZ |
||||
|
Input |
|||||
|
Voltage Range |
115～295VAC(±3VAC) |
176～297VAC(±3VAC) |
|||
|
Frequency Range |
50HZ:(46～54HZ)；60HZ:(56HZ～64HZ) |
||||
|
Power Factor |
0.98 |
||||
|
Output |
|||||
|
Voltage Precision |
220/230/240X (1±2%)VAC |
||||
|
Frequency Precision |
50/60HZ±0.05Hz |
||||
|
Power Factor |
0.7/0.8(optional) |
||||
|
Wave Distortion |
Linear load ＜3%??????? Non-linear load ＜6% |
||||
|
Overload capability |
Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. |
||||
|
Crest factor |
3:1 |
||||
|
Transfer Time |
0ms(AC to DC ) |
||||
|
Battery |
|||||
|
DC supply voltage |
36VDC |
96VDC |
96VDC |
240VDC |
240VDC |
|
Charge current |
4A/8A(optional) |
4A/8A(optional) |
4A/8A(optional) |
4.2A |
4.2A |
|
Internal battery capacity |
(38/65/80/100AH)optional |
||||
|
Panel display |
|||||
|
LCD |
Dis |
