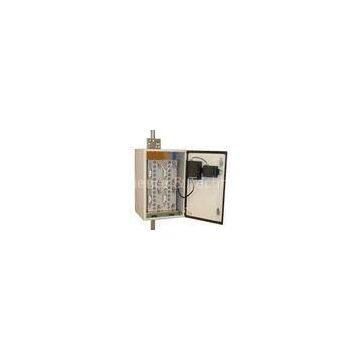

Pure Sine Wave AC Power 1KVA / 800W Outdoor Industrial UPS Power Systems With LCD Display

HW9110E? 1-10KVA

1KVA

2KVA

3KVA

6KVA

10KVA

Capacity

1KVA/800W

2KVA/1600W

3KVA/2400W

6KVA/4800W

1000KVA/8000W

Nominal voltage

220/230/240VAC

Nominal frequency

50/60HZ

Input

Voltage Range

115～295VAC(±3VAC)

176～297VAC(±3VAC)

Frequency Range

50HZ:(46～54HZ)；60HZ:(56HZ～64HZ)

Power Factor

0.98

Output

Voltage Precision

220/230/240X (1±2%)VAC

Frequency Precision

50/60HZ±0.05Hz

Power Factor

0.7/0.8(optional)

Wave Distortion

Linear load ＜3%??????? Non-linear load ＜6%

Overload capability

Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode.

Crest factor

3:1

Transfer Time

0ms(AC to DC )

Battery

DC supply voltage

36VDC

96VDC

96VDC

240VDC

240VDC

Charge current

4A/8A(optional)

4A/8A(optional)

4A/8A(optional)

4.2A

4.2A

Internal battery capacity

(38/65/80/100AH)optional

Panel display

LCD

Di
