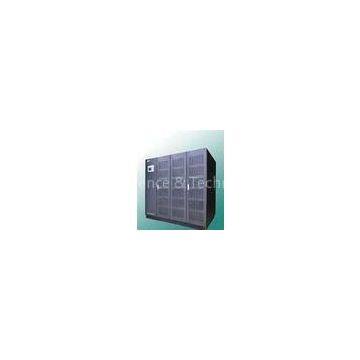

Generator compatible three phase IGBT Low Frequency Online UPS 160KVA 400VAC
- T/T L/C D/P D/A
- 7 days
You May Like
-
160KVA 380V, 12V 32pcs battery , three phase Cold start Low Frequency Online UPS
-
10KVA 380V, 32pcs 12V or 192pcs 2V battery three phase Low Frequency Online UPS
-
Single phase 240Vac Cold start over temperature protection Low Frequency Online UPS
-
ECO mode, EPO, IGBT RS232 and RS485 standard Low Frequency Online UPS 4KVA 220V
-
20KVA 220V, single phase Low Frequency Online UPS apply in IT device, ATM equipment
-
10KVA 220V, 4pcs 12V battery, Single phase overload protection Low Frequency Online UPS
Product Details
| Brand Name | Mengda | Place of Origin | China | |
| Model Number | CHP3300K |
Product Description
Certification:CE, QS, CCC
Generator compatible three phase IGBT Low Frequency Online UPS 160KVA 400VAC
CHP3000 series is three phase in and out online UPS, entirely surmounted the technical bottleneck in analog circuitry age, ingeniously applied the digital control technology and high-accuracy SMD technology which assured ultra-high system stability and is able to fully acclimate various grid environment, Single-machine capacity is ranging from 10KVA and 800KVA, widely used in telecom, bank, bond, traffic, utility, manufacture, etc.
Main features
Pure sine wave output, true online doubleconversion
7 inch colour LCD
Can be set to ECO mode
With EPO function
Can be with 100% unbalance load
Adopt the fourth layer PCB, and SMD technology
Sixth generation IGBT, much higher efficiency, lowetemperaturer, more reliable
Full protection, overload, over voltage, short circuit, over temperature etc
Cold start
Generator compatible
With RS232 and RS485 standard collocate,
Option SMMP and dry contact connection
Option battery manage function
specifications
|
model |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
|
Nominal capacity (KVA) |
10 KVA |
20 KVA |
30 KVA |
40 KVA |
50 KVA |
60 KVA |
80 KVA |
100 KVA |
120 KVA |
160 KVA |
200 KVA |
250 KVA |
300 KVA |
400 KVA |
|
Phase number |
3L+N+G |
|||||||||||||
|
Input power factor |
≥0.85 (option ≥0.95) |
|||||||||||||
|
rectifier |
Input rated voltage |
380VAC , 400VAC, 415VAC(option 208VAC, 220VAC) |
||||||||||||
|
range |
±25% |
|||||||||||||
|
Input nominal frequency |
50Hz±10%, 60Hz±10% |
|||||||||||||
|
Input overtone current |
6pulses rectifier＜30%??? 12pulses rectifier plus filter ＜5% |
|||||||||||||
|
Output ripple wave |
< 2％ |
|||||||||||||
|
Soft start |
0～100%? 5sec |
|||||||||||||
|
charging |
Charge mode |
Constant current first then constant voltage, charge with temperature compensation, automatic switch of even charge and float charge, programmable timing battery charge-discharge automatic maintenance |
||||||||||||
|
Float charging voltage |
432VDC |
|||||||||||||
|
Equalized charging voltage |
