Home > Products > Online Low Frequency UPS > 300KVA 415VAC, 7 inch colour LCD three phase ECO mode Low Frequency Online UPS

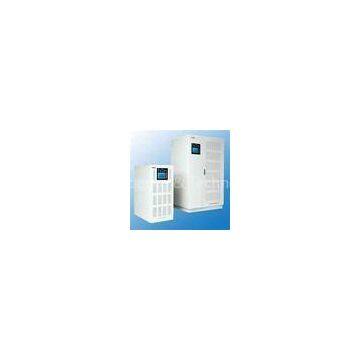

300KVA 415VAC, 7 inch colour LCD three phase ECO mode Low Frequency Online UPS
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
6KVA 220V, 4pcs 12V Battery single phase Cold start Low Frequency Online UPS
-
100KVA 415VAC, three phase ECO EPO IGBT Low Frequency Online UPS
-
60KVA 380VAC, 32pcs 12V battery, three phase EPO Low Frequency Online UPS
-
30KVA 380VAC, three phase Generator compatible / Cold start Low Frequency Online UPS
-
40KVA 400VAC, RS232 and RS485 standard three phase Low Frequency Online UPS
-
40KVA 400VAC, 192pcs 2V battery, three phase SNMP card Low Frequency Online UPS
Product Details
| Brand Name | Mengda | Place of Origin | China | |
| Model Number | CHP3100K |
Product Description
Certification:CE, QS, CCC
300KVA 415VAC, 7 inch colour LCD three phase ECO mode Low Frequency Online UPS
?CHP3000 series UPS
CHP3000 series is three phase in and out online UPS, entirely surmounted the technical bottleneck in analog circuitry age, ingeniously applied the digital control technology and high-accuracy SMD technology which assured ultra-high system stability and is able to fully acclimate various grid environment, Single-machine capacity is ranging from 10KVA and 800KVA, widely used in telecom, bank, bond, traffic, utility, manufacture, etc.
Main features
Pure sine wave output, true online doubleconversion
7 inch colour LCD
Can be set to ECO mode
With EPO function
Can be with 100% unbalance load
Adopt the fourth layer PCB, and SMD technology
Sixth generation IGBT, much higher efficiency, lowetemperaturer, more reliable
Full protection, overload, over voltage, short circuit, over temperature etc
Cold start
Generator compatible
With RS232 and RS485 standard collocate,
Option SMMP and dry contact connection
Option battery manage function
specifications
|
model |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
CHP |
|
Nominal capacity (KVA) |
10 KVA |
20 KVA |
30 KVA |
40 KVA |
50 KVA |
60 KVA |
80 KVA |
100 KVA |
120 KVA |
160 KVA |
200 KVA |
250 KVA |
300 KVA |
400K VA |
|
Phase number |
3L+N+G |
|||||||||||||
|
Input power factor |
≥0.85 (option ≥0.95) |
|||||||||||||
|
rectifier |
Input rated voltage |
380VAC , 400VAC, 415VAC(option 208VAC, 220VAC) |
||||||||||||
|
range |
±25% |
|||||||||||||
|
Input nominal frequency |
50Hz±10%, 60Hz±10% |
|||||||||||||
|
Input overtone current |
6pulses rectifier＜30%??? 12pulses rectifier plus filter ＜5% |
|||||||||||||
|
Output ripple wave |
< 2％ |
|||||||||||||
|
Soft start |
0～100%? 5sec |
|||||||||||||
|
charging |
Charge mode |
Constant current first then constant voltage, charge with temperature compensation, automatic switch of even charge and float charge, programmable timing battery charge-discharge automatic maintenance |
||||||||||||
|
Float charging voltage |
432VDC |
|||||||||||||
|
Equalized charging voltage |
