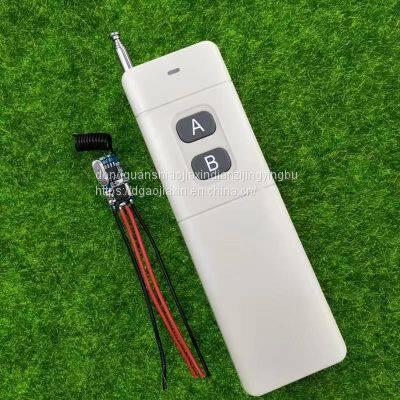

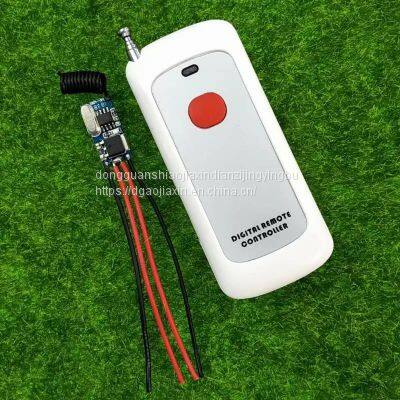

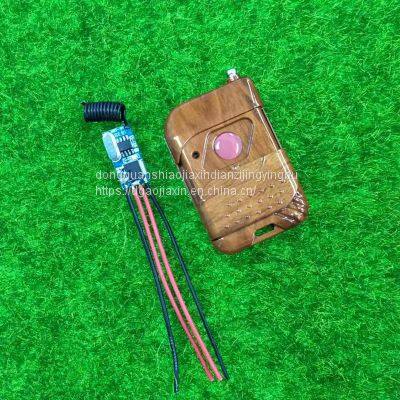

DC9V Fireworks - Power 15 v LED Stage Lighting Entrance Guard Control Ignition Distance Wireless Controller Remote Control Switch

1, an overview of the

AK - LD01 miniature LED panel USES the brand rf chip, high sensitivity, low power consumption, high efficiency of data transmission, good stability. By the single chip microcomputer control chip programming, working pattern diversity is easy to switch, single bond use easy to operate, the code is simple is easy to get started. Can be used in the lighting control, such as smart home control on the scene.

2, the product features

(1) working frequency: 315 MHz / 433.92 MHz (special frequency can be customized according to customer requirements).

(2) power supply scheme: DC5-12 v (can be customized to other power supply scheme);

(3) : standby current 3.6 mA;

(4) a good selectivity and stray radiation inhibition;

(5) equipment to adapt to the temperature range: - 20-70 ℃ (even under the harsh environment temperature can work normally);

(6) product size: 22.5 * 11.7 * 4.92 mm (excluding shell and line);

(7) product weight: 4.5 g (excluding shell line).

3, a function description

Serial number foot a function name

1

ANT

The antenna ports

2

GND

Power supply cathode

3

V +

positive

4

P +

Output the anode

5

P -

Output the cathode

4, operating functions

3.1 control panel keys function description

Panel buttons for self-locking working pattern, as a key external LED lights, press the button once again and external LED lights, has nothing to do with control panel working mode.

3.2 yards operating

The long according to the control panel buttons 5 seconds, light is lit up after press any button remote control code, code success will flash for four lights.

3.3 working mode switching

T place bonding pad on the sub console panel working mode for self-locking, L in bonding pad on the sub console panel working model for the interlock, two short sub work for inching mode.

3.4 working mode

Inching mode: press the buttons on the remote control external LED lights up, loosen the key external LED lights went out.

Since the lock mode: external LED lit up by a remote control buttons, press the button once again and external LED lights went out.

Interlock pattern: A key external LED lit up by A remote control, press the B key external LED lights, press A key external LED lights up again.

3.5 the qing code

Push the panel long, until the indicator light from out to bright flash 4 indicates that the qing code to success.

5, matters needing attention

Working voltage should not exceed rated voltage.

Put it out of reach of children.

In the larger environment, wireless interference may reduce control distance.

Prohibited in damp environment use, otherwise may cause the damage of the control panel.
