Home > Products > Online High Frequency UPS > EA906 1~10KVA double conversion single phase online high frequency UPS with LCD display

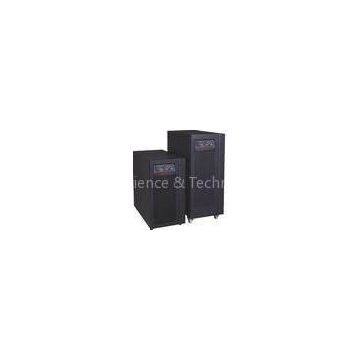

EA906 1~10KVA double conversion single phase online high frequency UPS with LCD display

FOB Price

Negotiable / Set

1 Set(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Mengda

Place of Origin

China

Product Description

Delivery Time:3-10 days
Certification:CE, QS, CCC

EA906? 1~10KVA double conversion single phase online high frequency UPS with LCD display

Output PF 0.8, Add ECO function,(economic mode), the efficiency up to 95%.Wide input voltage range: 100VAC~300VAC.
?

Introduction

Online HF UPS EA900 II series 1KVA ~ 10KVA is EAST new generation UPS, we adopt the latest?R & D achievements and application experience. With advanced DSP digital control technology,?it improves performance& system reliability effectively, and achieves?higher level of power?density and miniaturization.?Besides that, to?meet?all?customer’s individualized?needs,?as a high-end small power range online UPS, EA900 II can offer highly reliable power for departmental servers, small local area networks, workstations, industrial machines, small medical equipment, and other small precision electronic devices

Ideal Apllication

Centralized server center, mainframe, network control center, computing center

Features&Benefits

Adopt DSP digital control technology

Adopt advanced DSP digital control technology,?it improves performance& system reliability effectively, and achieves?higher level of power?density and miniaturization.?

Besides that, it can?meet?all?customers’s individualized?needs,?EA900 II Series 1?~?10KVA provide?very rich?extensible function, users can configure the?need?flexibly

Output?power factor?0.8
PF 0.8 is more suitable for the trend of electrical?equipment,?and can take more load.?With new ECO (Economic)?function,?system?efficiency?can achieve?95%,?it lower?UPS power?consumption and save?user\'s?cost.

Input PFC

Adopt digital control input PFC technology, Input Power Factor can be more than 0.98, it avoids pollution to power grid, saves energy, and also reduces cost

Digital Control?at?DC-DC Converter

EA900II 1~3KVA UPS adopt digital control, use Digital Control at DC-DC converter part instead of Analog Control in the past, and it is more reliable.

Green Environment-Friendly Model

EA900II is green model; comply with ROHS and National Electronics Pollution Management Solutions. Under normal using, it will not cause harm to human and environment

Wide input voltage range

Extremely wide input voltage and frequency range, even in very poor power environment of the remote areas can normally supply the power. It reduced the frequency of battery discharge so that the battery life can be prolonged.

?The UPS contain I/P and O/P over-protection, short voltage protection, overload protection, short-circuit protection, inverter over-heat protection, battery low voltage warning protection and battery overcharge protection, etc. Which is the above greatly ensure the stability and reliability of running the system.

Perfect Protection

With bypass function, when the output overload or UPS failure, can turn to bypass without interruption, and supply power to load by mains supply, accordingly provide alarm information.

With input L and N lines detective function, can prevent the danger caused by the inversion of L and N lines.

Cold start and mains power start function.

For emergency status, UPS can start with battery directly when the mains power anomalies.

UPS can start directly without battery; can be used for high precision stabilizer

Can be used with generator

Wide range of input voltage and frequency, that can effectively isolate the adverse power from generator, can provide clean, safe and stable power supply the load.

Zero switching

Double-conversion online design, that can tracking frequency, phase locked, stable voltage, filter noise, prevent mains interference for UPS output, let the UPS become pure sine wave power supply, to provide more comprehensive protection for the load. Transfer time is zero when the mains power unstable, it can ensure safety and reliability for the load operation

Intelligent Battery Management

It adopts intelligent management technology to charge by three steps, to effectively extend battery life and reduce the number of battery maintenance
