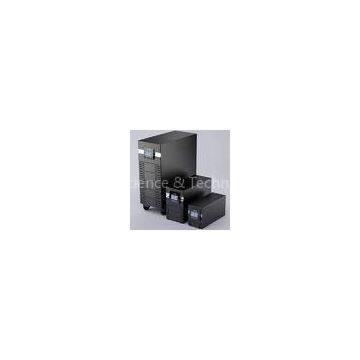

3 phase Smart RS232 Pure Sine Wave True online High Frequency UPS with 10, 15, 20 KVA

Model

HP9316C 10-20KVA

10KT-XL

15KT-XL

20KT-XL

Rated Power

10KVA/7000W

15KVA/10500W

20KVA/14000W

Rated Voltage

380VAC 3phase with ground

Rated Frequency

50/60HZ

Input

VoltageRange

304～478VAC(±3VAC)

FrequencyRange

50HZ:(46～54HZ);60HZ:(56HZ～64HZ)

Power Factor

0.98

Output

Voltage Regulation

208/220/230/240X(1±2%)VAC

Frequency Regulation

50/60HZ±0.05 Hz

Power factor

0.7

Voltage distortion

Linear load<3%??? Non-Linear load<6%

Overload

Capability

110%～150% for 30s change to bypass model, Recover after load normal

Current Crest Ratio

3:1

Transfer time

0ms(AC mode→ Battery mode)

Battery

DC Voltage

240VDC

Recharge Current

4.2A

Display

LCD

Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.

Communication

Interface

Smart RS232, SNMP(optional) , USB(optional)

Environment

Operation Temperature

0～40℃

Humidity

0～95%non-condensing

Storage Temperature

-25℃～55℃

Sea level elevation

<1500m

Noise Level(1m)

<55dB

Physical Characteristic

Weight(KG)

N.W.

47

54

54

G.W.

53
