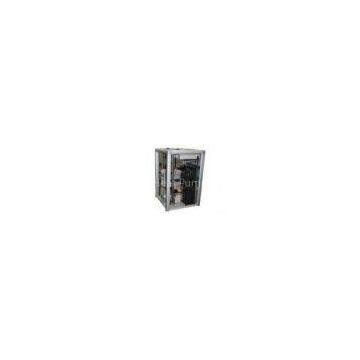

Soil-water ground source heat pump for home heating and cooling System

How?it?works
There?are?three?important?elements?to?a?ground?source?heat?pump:?

1.The ground loop
This is comprised of lengths of pipe buried in the ground, either in a borehole or a horizontal trench. The pipe is usually a closed circuit and is filled with a mixture of water and antifreeze, which is pumped around the pipe absorbing heat from the ground. The ground loop can be:
?Vertical, for use in boreholes
?Horizontal, for use in trenches
?Pound/Lake installation

3.Heat distribution system
This consists of under floor heating or radiators for space heating and in some cases water storage for hot water supply.

Heat?pump

Type

GHP12/B-QNNNE

Dimensions, weights, connection?dimensions

Dimensions

HxWxD

960x600X600

Weight

kg

145

Refrigerant

Type

R410A

Filling?weight

kg

1.8

Permissible?operating?pressure

Mpa

4.2

Pipe?connector-hot?side

Inch

G11/4”

Pipe?connector-cold?side

Inch

G11/4”

Evaporator

Type

Brazed?plate?heat?exchanger

Condenser

Type

Compressor

1xScroll

Performance?Heat?pump

Heat?output

at?B0/W35

kW

11.8?

Power?consumption?

kW

2.70?

Performance?factor

4.37?

Hot?side?volume?flow

m3/h
