Injection Compressor New Split Room Air to Water Low Temperature Heat Pumps, EN14511

TAIYU? SPLIT EVI AIR/WATER HEAT PUMP TECHNICAL DATA

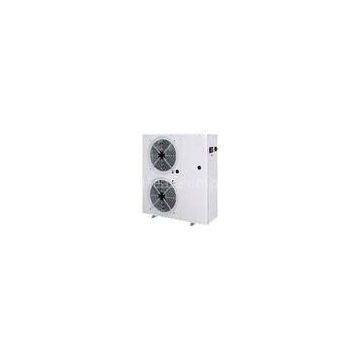

LOW TEMP. AIR TO WATER HEAT PUMP

AW10/F-DNNNE

Heat output/Power consumption at 7/35℃

kW

11.0/2.8

Heat output/Power consumption at 7/45℃

kW

11.8/3.5

Heat output/Power consumption at 7/55℃

kW

11.4/4.5

Heat output/Power consumption at 2/35℃

kW

10.7/3.1

Heat output/Power consumption at 2/45℃

kW

10.4/3.5

Heat output/Power consumption at -7/35℃

kW

8.3/3.0

Heat output/Power consumption at -7/45℃

kW

8.2/3.7

Heat output/Power consumption at -10/35℃

kW

7.5/3.1

Heat output/Power consumption at -10/45℃

kW

7.4/3.8

Heat output/Power consumption at -15/35℃

kW

6.8/3.1

Heat output/Power consumption at -15/45℃

kW

6.7/3.8

Starting current

A

46

Power

380-415V/3PH/50Hz

Compressor

HITACHIscroll

Condenser

Brazed plate heat exchanger

Nominal flow heating medium

l/s

0.52

Internal pressure drop at nominal flow

kPa

24

Air flow

m3/h

3000

Nominal output fan

W

220

Max outgoing heating medium temperature

℃

55℃

Indoor unit dimensions(HxWxD)

mm

1200x650x400

outdoor unit dimensions(HxWxD)

mm

880x1150x350

Pipe connector
