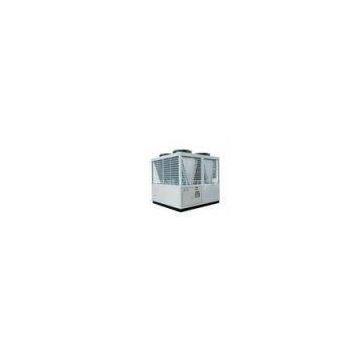

62-108kW air source cooled heat pump efficiency for commercial with V shape Evaporator
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
90kw ~ 330kw Single compressor, screw type Air cooled chiller heat pump
-
Environment-friendly refrigerant Air cooled heat pumps with COP more than 4.5
-
Eco friendly air to water heat pump system with Siemens controller cool your house
-
Air to water heat pump with SWEP or GEA plate efficiency heats or cools your house
-
Energy saving galvanized heating & cooling air source heat pump for R410a refrigeration
-
Bset Eco friendly high efficiency air source cooled heat pumps to cool and heat your home
Product Details
| Brand Name | Taiyu | Place of Origin | China | |
Product Description
Certification:CE / EN14511
62-108kW air source cooled heat pump efficiency for commercial with V?shape Evaporator
Specifications
air cooled heat pump
Heating: 62-108kW
high quality, low price
CE,CCC,ISO9001,ISO14001
air to water heat pump
air cooled heat pump?for commpercial applications?
V?shape Evaporator, Top Air blow type heat pump?air to water?heater specifications
1. Hitachi, Copeland scroll compressors, strong operation and long life.
2. Emerson ALCO expansion valve, accurate and stable throttling function.
3. High efficiency coaxial coil heat exchanger, low fouling, low maintenance cost.
4. Durable coating, with special casing design adopting bolts and nuts, no damage to the coating, avoiding rust for long time.
5. Accurate casing for the fan shroud, with strictly equal distance between the fan blades and the fan shroud edge, thus largely reducingvibration and noise.
6. The highest water outlet temperature: 60oC.
7. Warranty: 18 months guarantee for the whole units.
8. Intelligent Controller, with LCD touch screen display
9. Intelligent Defrosting System, enable unit to work reliably in chilling climates
10. High/Low pressure protection
11. Automatic unit on/off time clock
12. Insufficient water flow protection
| Model: | AXRS-12II | AXRS-22II | AXRS-27II | AXRS-43II | AXRS-66II | AXRS-88II | AXRS-132II | AXRS-176II | |
| Circular Water Flow Rate (m3/h) | 2.06 | 3.78 | 4.64 | 7.38 | 11.32 | 15.09 | 22.63 | 30.18 | |
| Heating Capacity kW | 12 | 22 | 27 | 43 | 66 | 88 | 132 | 176 | |
| Heating Capacity BTU/Hr. | 40968 | 75108 | 92178 | 146802 | 225324 | 300100 | 450300 | 600500 | |
| Rated Input Power(KW) | 2.35 | 4.28 | 5.25 | 8.38 | 12.8 | 17.2 | 25.8 | 34.4 | |
| Electric Current(A) | 4.82 | 7.63 | 9.45 | 15.2 | 23.5 | 31.6 | 46.4 | 63.2 | |
| Rated Water Temperature oC | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
| Max. Water Temperature oC | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Refrigerant charge qty kg | 1.5 | 2.6 | 2.8 | 2.6 *2 | 2.8 *2 | 6 *2 | 9 *2 | 6 *4 | |
| Compressor Qty | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 4 | |
| Compressor Type | Full? hermetic Scroll type | ||||||||
| Airside Heat Exchanger | Type | Inner grooved high efficiency finned copper tube heat exchanger | |||||||
| Motor Power(W) | 120 | 550 | 550 | 750 | 550*2 | 750*2 | 1100*2 | 750*4 | |
| Water Cycle Parameter | Heat Exchanger | Vertical High Efficiency Shell Heat Exchange | |||||||
| ? | Inlet Water Pipe | DN25 | DN25 | DN25 | DN40 | DN50 | DN50 | DN50 | DN80 |
