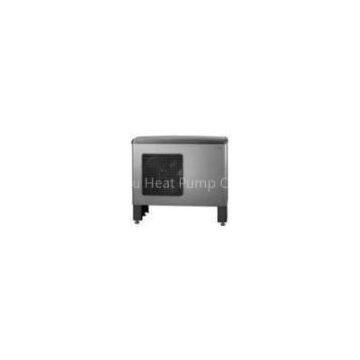

380-415V / 3PH / 50Hz Home Air ground Source Heating and Cooling heat pump system

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Taiyu

Place of Origin

China

Product Description

Delivery Time:10-15 days after receiving TT payment
Certification:CE / EN14511

380-415V / 3PH / 50Hz Home Air ground Source Heating and Cooling heat pump system

Advantages:

Easy installation Utilization all the year round for heating, cooling as well as hot water Low investment costs with high quality Silent operation Reducing your carbon emission Enjoying your green life by installing Taiyu heat pumps Reducing your heating and cooling bill with high efficiency Taiyu heat pumps

AW10/B-DNNNE?technical?data

AIR?TO?WATER?HEAT?PUMP	AW10/B-DNNNE
Heat?output/Power?consumption?at?7/35℃	kW	11.0/2.9
Heat?output/Power?consumption?at?7/45℃	kW	10.5/3.3
Heat?output/Power?consumption?at?7/55℃	kW	10.2/4.1
Heat?output/Power?consumption?at?2/35℃	kW	9.5/2.8
Heat?output/Power?consumption?at?2/45℃	kW	9.2/3.4
Heat?output/Power?consumption?at?-7/35℃	kW	7.2/2.8
Heat?output/Power?consumption?at?-7/45℃	kW	7.1/3.4
Cool?output/Power?consumption?at?35/7℃	KW	9.5/3.3
Starting?current?	A	46
Power		380-415V/3PH/50Hz
Compressor		HITACHI?scroll
Condenser		Brazed?plate?heat?exchanger
Nominal?flow?heating?medium	l/s	0.52
Internal?pressure?drop?at?nominal?flow	kPa	24
Air?flow	m3/h	3000
Nominal?output?fan	W	220
Max?outgoing?heating?medium?temperature	℃	55℃
Dimensions(HxWxD)	mm	1050x1050x450
Pipe?connector		DN25
Weight	kg	125

Taiyu AW10/B-DNNNE, heating & cooling air source heat pump, heats & cools your house as well as offers domestic hot water, characterized by perfect performance, eco friendly refrigerant, high quality and competitive price.

Taiyu heat pumps adopt the following world famous parts:

Siemens controller Hitachi scroll compressor SWEP or GEA plate type heat exchanger Emersion thermal expansion valve Emersion dry filter Schneider A/C contactor Honeywell R410a refrigeration

Air source heat pumps use the refrigeration process to transfer low grade energy from the air outside into high grade energy used for heating and domestic hot water. Even at temperatures as low as -20?C, an air source heat pump can supply significantly more energy than i
