Product Details
| Brand Name | Taiyu | Place of Origin | China | |
Product Description
Certification:CE / EN14511

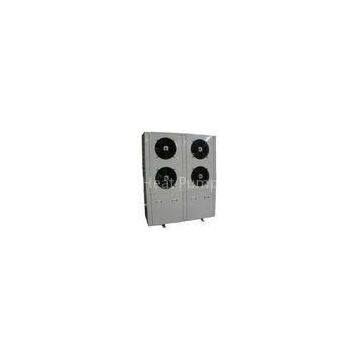

EVI Low temperature Scroll Compressor Heat Pump, Room Air Source Heat Pumps 2- 15KW
?
Taiyu low temperature air source heat pump AW10/L-DNNNE, adopt Hitachi EVI compressor, can be used at -20 degree outside temperature. The injection new technology make it possible that, even at -15 degree, the efficiency of the heat pump can reach 1.9. This is the ideal product to be used at the rather cold winter area.
AW10/L-DNNNE
|
LOW?TEMPERATURE?AIR?TO?WATER?HEAT?PUMP |
AW10/L-DNNNE |
|
|
Heat?output/Power?consumption?at?7/35℃ |
kW |
11.40/2.70 |
|
Heat?output/Power?consumption?at?7/45℃ |
kW |
12.10/3.41 |
|
Heat?output/Power?consumption?at?7/55℃ |
kW |
12.18/4.19 |
|
Heat?output/Power?consumption?at?2/35℃ |
kW |
10.30/2.70 |
|
Heat?output/Power?consumption?at?2/45℃ |
kW |
11.63/3.37 |
|
Heat?output/Power?consumption?at?-7/35℃ |
kW |
9.78/3.04 |
|
Heat?output/Power?consumption?at?-7/45℃ |
kW |
9.66/3.58 |
|
Heat?output/Power?consumption?at?-10/35℃ |
kW |
8.75/3.04 |
|
Heat?output/Power?consumption?at?-10/45℃ |
kW |
8.57/3.62 |
|
Heat?output/Power?consumption?at?-15/35℃ |
kW |
7.82/3.09 |
|
Heat?output/Power?consumption?at?-15/45℃ |
kW |
7.73/3.62 |
|
Starting?current? |
A |
53 |
|
Power |
380-415V/3PH/50Hz |
|
|
Compressor |
HITACHI?scroll |
|
|
Condenser |
Brazed?plate?heat?exchanger |
|
|
Nominal?flow?heating?medium |
l/s |
0.55 |
|
Internal?pressure?drop?at?nominal?flow |
kPa |
16 |
|
Air?flow |
m3/h |
5000 |
|
Nominal?output?fan |
W |
300 |
|
Max?outgoing?heating?medium?temperature |
℃ |
55 |
|
Dimensions(HxWxD) |
mm |
1075X1105X505 |
|
Pipe?connector |
DN32 |
|
|
Weight |
kg |
185 |
|
The?above?data?is?tested?by?EN14511 |
More Detail:
When the ambient temperature drops to below zero degree in winter, the normal air source heat pump can not run stably caused by the system low evaporated temperature, small gas absorption , small system gas flow and unstable superheat degree, etc . So that the air source heat pump’s heating output is low , the system runs unstably , even worse to cause the compressor damaged. Normal air source heat pump can
