Home > Products > Low Temperature Heat Pumps > 5kw, 7kw, 9kw, 12kw and 15kw Energy Saving Low Temperature Heat Pump All in One Type

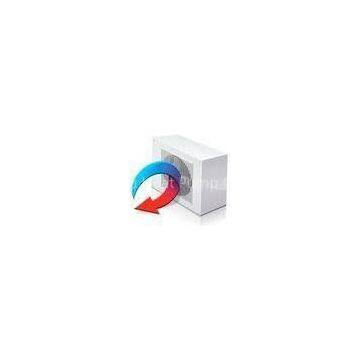

5kw, 7kw, 9kw, 12kw and 15kw Energy Saving Low Temperature Heat Pump All in One Type
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
R410a High Efficiency Low Temperature Heat Pumps, Room Air to Water Heat Pump 2KW - 15KW
-
CAR-60EVI EVI Technology Low Temperature Heat Pumps With High COP
-
Copeland Scroll Compressor Style Low Temperature Air Source Heat Pump
-
High Efficiency Mini Split Air Water Low Temperature Heat Pumps With 2, 7, 10 KW For Room
-
230V / 1HP 316 Automatic Adjustment Stainless Steel Low Temperature Air Source Heat Pump
-
High-efficiency Low Temperature Heat Pumps for Plate-type, Double-pipe Heat Exchanger
Product Details
| Brand Name | Taiyu | Place of Origin | China | |
Product Description
Certification:CE / EN14511
5kw, 7kw, 9kw, 12kw and 15kw energy saving low temperature heat pump all in one type
Specifications
Inverter air source heat pumps,
with inverter technology
Can work under -10 centigrade lowering temp.
65 Centigrade output
DC Inverter air to water heat pump/ DC Inverter air source heat pump characteristics:
1.Capacity range:? 5kw,7kw,9kw,12kw and 15kw.
2.The cop is above 4.5, energy saving.
3.Can be used for floor heating, fan coils, water heaters and also swimming pools, and modern radiators.
4.With CE, RoHS standard.
5.Inside unit include(controller,three way valve,flow switch,WILO water pump,plate heat Ex and inside connection)
6.Outside unit with DC inverter R410a,electrical expansion valve,compressor heater,base heater,condenser bottom heater.
7. With perfect system of defrosting which can work under ambient temperature of -20 Centigrade.
8.?3 years\' warranty on the whole units.
Inverter air water heat pumps spec:
| Model | Unit | VS-50DC? | VS70-DC | VS90-DC | VS120-DC | |
| outdoor unit | ||||||
| power supply | Phase/V/Hz | 1/220-240/50 | 1/220-240/50 | 1/220-240/50 | 3/380-415/50 | |
| heating | rating capacity | kW | 5 | 7 | 9 | 12 |
| rating input | W | 580 ~ 2080 | 750 ~ 2400 | 1250 ~ 3400 | 1650 ~ 4650 | |
| rated current | A | 5.1 ( 3.5 ~ 9.0 ) | 7.2 ( 3.5 ~ 11 ) | 9.7 ( 5.5 ~ 15.5 ) | 8.5 ( 3.3 ~ 10.3 ) | |
| starting current | A | 3 | 3 | 4 | 3 | |
| max. input cnsumption | ? | W | 2300 | 3000 | 3800 | 5200 |
| compressor type | ? | DC inverter rotary | DC inverter rotary | DC inverter rotary | DC inverter rotary | |
| indoor side | heat exchanger | ? | shell tube | shell tube | shell tube | shell tube |
| wire control | ? | inside | inside | inside | inside | |
| noise level | dB(A) | 32 | 34 | 36 | 36 | |
| dimension ( W*H*D ) | mm | 400 x 550 x 250 | 450 x 650 x 350 | 450 x 650 x 350 | 450 x 650 x 350 | |
| packing ( W*H*D ) | kg | 450 x 600 x 300 | 500 x 700 x 400 | 500 x 700 x 400 | 500 x 700 x 400 | |
| net/gross weight | kg | 35/40 | 45/50 | 50/55 | 55/60 | |
| outdoor side | motor speed | r/min | 850 | 850 | 850 | 850 |
| outdoor exchanger | ? | copper pipe + aluminium fin | ||||
| air flow | m3/h | 1900 | 2300 | 3000 | 3500 | |
| noise level | dB(A) | 55 | 58 | 60 | 60 | |
| dimension ( W*H*D ) | mm | 800 x 550 x 250 | 875 x 615 x 315 | 930 x 790 x 410 | 830 x 1260 x 310 | |
| packing ( W*H*D ) | mm | 890 x 655 x 360 | 995 x 690 x 410 | 1040 x 820 x 465 | 940 x 1360 x 390 | |
| net/gross weight | kg |
