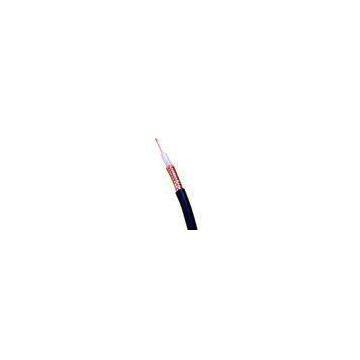

Braided RG58A/U Coaxial Cable, 50 Ohm Cable With Low Signal Loss For CCTV, Broadcast
- T/T L/C D/P D/A
- 7 days
You May Like
-
PVC Jacket 50 Ohm Antenna Cable, Tinned Copper Wire Braided RG58 Coaxial Cable for CCTV
-
RG213/U 50 Ohm Coaxial Cable With PVC Jacket, High Voltage Bare Copper Braided Cable
-
Solid Copper RG213 Coaxial Cable, 50 Ohms Cable With PVC Jacket For Date Transmission
-
Tinned Copper Wire RG8 Coaxial Cable, Low Signal Loss 50 Ohm Cable for Ethernet, CCTV
-
50 Ohm CCTV Coaxial Cable, RG58 Braided Coaxial Cable With Solid Copper Inner Conductor
-
Braided 8D-FB Coaxial Cable, 50 Ohms Cable With PVC Outer Jacket for GSM, 3G, CDMA System
Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | RG58A/U coaxial cable |
Product Description
Certification:CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Braided RG58A/U Coaxial Cable, 50 Ohm Cable With Low Signal Loss For CCTV, Broadcast
Applications
Transmission of data signals in applications such as antenna feed cables or Ethernet backbones CCTV installations, Control Video-cameras and Video-security in public and private places, for supervisory of buildings, enclosed spaces and open outdoor areas and any other Video frequency application of an RG58 C/U MIL standards. Suitable for Broadcast application and other equipment in: Laboratories, Supermarkets, Airports, Hospitals, Big Areas, Sport facilities etc. Industrial/instrumentation and control, computer cable, medical, RFDescription:
RG58A/U coaxial cable, solid copper as inner conductor, Dielectric core is insulating grade virgin polyethylene, tinned copper wire for braiding material, and PVC jacket.
Specifications:?????????????????????
|
construction |
Testing item |
Unit |
Standard |
|
Inner conductor |
material |
- |
20AWG solid copper(19*32) |
|
diameter |
mm |
094mm0.02mm(0.037 inches) |
|
|
Dielectric |
material |
- |
foamed PE |
|
diameter |
mm |
2.90mm0.13mm(0.114 inches) |
|
|
shield, Braid |
Material |
- |
Tinned copper wire |
|
Diameter |
mm |
0.15 |
|
|
Ends |
EA |
6 |
|
|
Carrier |
EA |
16 |
|
|
Pitch |
mm |
40 |
|
|
Electrical properties |
Coverage |
% |
93% |
|
jacket |
PVC |
mm |
4.930.13mm(0.194 inches) |
|
Nominal velocity of propagation |
% |
73% |
|
|
Capacitance |
pF/M |
66 |
|
|
Characteristic impedance |
Ω |
54 3 |
|
|
SRL |
dB |
20 |
|
|
Attenuation 20℃(max) |
10MHZ |
dB/100m |
4.26 |
|
100MHZ |
14.76 |
||
|
200MHZ |
21.65 |
||
|
400MHZ |
23.29 |
||
|
700MHZ |
46.58 |
||
|
900MHZ |
54.45 |
||
|
1000MHZ |
59.37 |
Competitive Advantage:
