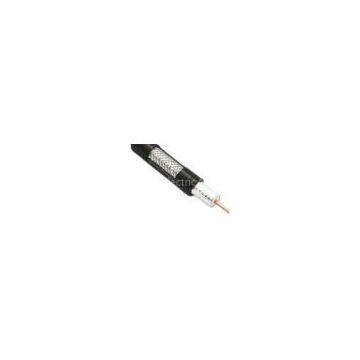

Low Loss LMR200 Coaxial Cable With PVC Jacket, Flexible Braided 50 Ohm Cable for WLL, GPS
- T/T L/C D/P D/A
- 7 days
You May Like
-
Tinned CCA Braided 50 Ohm Cable, Flexible Low Loss LMR 240 Coaxial Cable for WiMAX, SCADA
-
Low Loss 300 Coaxial Cable, 50 Ohm Flexible Coaxial Cable For Antenna Connection
-
Braided 50 Ohm Cable With PVC Jacket 400 Flexible Coaxial Cables For Communication
-
Flexible 500 Coaxial Cable, Low Loss Tinned CU Braided 50 Ohm Cable For Mobile Antenna
-
600 50 Ohm Coaxial Cable, Flexible Low Loss Communication Coaxial Cable for WLL, GPS
-
Tinned Copper Braided 50 Ohm Cable, 5D-FB Coaxial Cable For Microwave Communication System
Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | LMR 200 coaxial cable |
Product Description
Certification:CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Low Loss LMR200 Coaxial Cable with PVC Jacket, Flexible Braided 50 Ohm Cable for WLL, GPS
Applications:
LMR cable is a good solution for…
VLF, AM and FM radio broadcast systems. VLF, AM and FM radio broadcast systems. Replacement of RG-8/9913 air-dielectric type cable. Jumpers for equipment room and antenna connection. Military data links. Application for WLL, GPS, WiMAX, SCADA, Mobile Antennas.Description & Specifications:
|
Description |
Material |
inches |
mm |
|
Inner Conductor |
Solid BC or CCA |
0.044 |
(1.12) |
|
Dielectric |
Foam PE |
0.116 |
(2.95) |
|
Outer Conductor |
Aluminum Tape |
0.121 |
(3.07) |
|
Overall Braid |
Tinned CU or tinned CCA or as per request |
0.144 |
(3.66) |
|
Jacket |
PVC or PE |
0.195 |
(4.95) |
|
Performance Property |
Units |
US? |
(metric)? |
|
Bend Radius: repeated |
in. (mm) |
2 |
(50.8) |
|
Tensile Strength |
lb (kg) |
40 |
(48) |
|
Performance Property |
0F |
oC |
|
Installation Temperature Range |
-40/+185 |
-40/+85 |
|
Storage Temperature Range |
-94/+185 |
-70/+85 |
|
Operating Temperature Range |
-40/+185 |
-40/+85 |
|
Performance property |
units |
?US |
metric |
|
Velocity of Propagation |
% |
84 |
|
|
Impedance |
ohms |
50 |
|
|
Capacitance |
pF/ft (pF/m) |
24.5 |
(80.3) |
|
Shielding Effectiveness |
dB |
>90 |
|
|
DC Resistance |
|||
|
Inner Conductor |
ohms/1000ft (/km) |
5.36 |
(17.6) |
|
Outer Conductor |
ohms/1000ft (/km) |
4.9 |
(16.1) |
|
Voltage Withstand |
Volts DC |
1000 |
|
Frequency(MHz) |
