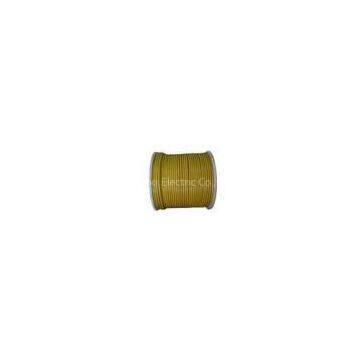

MSHA Certified Leaky Feeder Cable With Yellow Jacket, 75 ohm Mine Communication Cable
- T/T L/C D/P D/A
- 7 days
You May Like
-
UL Standard CATV Coaxial Cable, RG540 75 ohm Cable With Bare Copper Inner Conductor
-
RG540 Braid Cable for CATV / CCTV, 75 ohm DBS Direct Broadcasting Satellite Cable
-
Bare Copper Braid RG Coxial Cable, RG500 Coxial Cable With PE Jacket For CATV, CCTV, DBS
-
75 ohm RG500 Coaxial Cable For CCTV System, Aluminum Wire Braid CATV Coaxial Cable
-
Aluminum Wire Braid RG412 Coaxial Cable, ROSH Standard CATV Coaxial Cable With Messenger
-
RG412 75 ohm Coaxial Cable with Messenger, RG412 Braid Cable for CCTV, CATV System
Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | Mine communication cable |
Product Description
Certification:CE, ISO9000, ISO14001,RoSH, MSHA
MSHA Certified Leaky Feeder Cable With Yellow Jacket, 75 ohm Mine Communication Cable
Applications:
tunnels ships In-building wireless systems. perimeter detection Mines underground communication system metro stationsDescription:
The standard length is 350m or 500m with a yellow outer jacket.The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.
As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.
Specification:
|
Inner conductor |
2.31mm bare copper |
|
Dielectric |
9.50mm |
|
Outer conductor |
16x0.6 bare copper wire |
|
Outer jacket |
15.0mm0.2mm |
|
Frequency |
5 to 500MHZ |
|
impedance |
75 ohms |
|
Attenuation @160 MHZ |
4.2dB/100m |
|
DC resistance inner conductor |
＜4.5 ohm/km |
|
DC resistance outer conductor |
＜4.1 ohm/km |
|
capacitance |
54 pF/m |
|
Insulation resistance |
＞10.4m ohm/km |
|
MIN. bend radius |
150mm |
|
Operating temperature |
-40 to +70 centigrade |
Competitive Advantage:
Libo cable was established in 1994, it covers over 340,000 square meters on our operating area. Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000. Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services. Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.Contact Us
