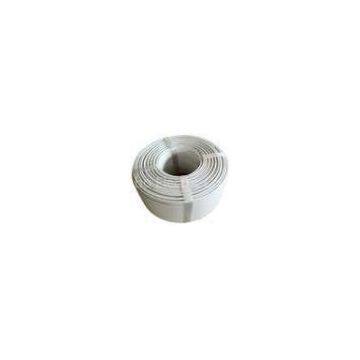

UL Standard 75 Ohm CATV Coaxial Cable, Tri-Shield RG7 Coaxial Cable for Satellite System
- T/T L/C D/P D/A
- 7 days
You May Like
-
Copper Clad Steel CATV Coaxial Cable With Messenger, Standard Shield RG6 Coaxial Cable
-
Anti-Interferemce 75ohm RG6 Coaxial Cable With Jelly, Drop Cable For CATV, CCTV Systems
-
Tri-Shield RG6 Coaxial Cable With ROSH Standard, 75 Ohm Coaxial Cable For CATV System
-
Dual RG6 Coaxial Cable for CATV and MATV, PVC Jacket 75 Ohm Video Cable With Messenger
-
UV Stabilized Jacket CCTV Coaxial Cable, RG59 75 Ohm Coaxial Cable for Indoor CATV System
-
ROSH Standard 75 Ohm CATV Coaxial Cable, RG59 Standard-Shield Cable for Satellite Systems
Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | RG7 |
Product Description
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
UL Standard 75 ohm CATV Coaxial Cable, Tri-Shield RG7 Coaxial Cable for Satellite System
Product description:
1.3mm solid copper + 5.72mm FPE+ bonded aluminum foil +60% aluminum alloy wire + normal aluminum foil+ 8.30mmPVC
|
construction |
Testing item |
Unit |
Standard |
|
Inner conductor |
mm |
1.30±0.01 |
|
|
Dielectric |
5.72±0.05 |
||
|
1st shield, Tape |
Material |
- |
Bonded aluminum foil |
|
2nd shield, Braid |
Material |
- |
Alloy wire |
|
Electrical properties |
Coverage |
% |
60% |
|
3rd shield, Tape |
Material |
- |
Normal aluminum foil |
|
4th shield, Braid |
material |
- |
Alloy wire |
|
coverage |
% |
40% |
|
|
Outer jacket |
PVC or PE |
mm |
8.59±0.10 |
|
Withstanding voltage |
- |
AC 1000V/min |
|
|
Capacitance |
pF/m |
54±3 |
|
|
Characteristic impedance(10MZ) |
Ω |
75±3 |
|
|
SRL |
dB |
20 |
|
|
Velocity of propagation |
% |
85 |
|
|
Attenuation @ 68OF(20oC) (max) |
5MHZ |
dB/100m |
1.54 |
|
55MHZ |
4.10 |
||
|
250MHZ |
8.40 |
||
|
300MHZ |
9.25 |
||
|
450MHZ |
11.35 |
||
|
600 MHZ |
13.28 |
||
|
750 MHZ |
14.99 |
||
|
865 MHZ |
16.17 |
||
|
1000 MHZ |
17.45 |
||
|
1200 MHZ |
19.23 |
||
|
1450 MHZ |
21.13 |
||
|
1750 MHZ |
23.10 |
Applications:
RG7 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:
RG7 cable has outstanding anti-interference effectiContact Us
