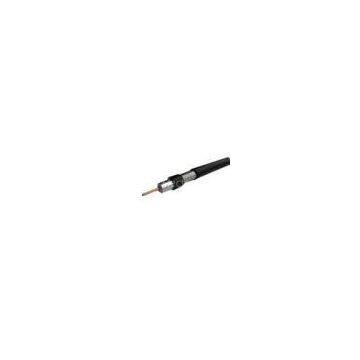

Flexible 500 Coaxial Cable, Low Loss Tinned CU Braided 50 Ohm Cable For Mobile Antenna
- T/T L/C D/P D/A
- 7 days
You May Like
-
600 50 Ohm Coaxial Cable, Flexible Low Loss Communication Coaxial Cable for WLL, GPS
-
Tinned Copper Braided 50 Ohm Cable, 5D-FB Coaxial Cable For Microwave Communication System
-
PVC Jacket 4D-FB Coaxial Cable, Braided 50 Ohm Cable for 3G, GSM, CDMA Telecommunication
-
Underground Leaky Feeder Cable, MSHA 75 Ohms Leaky Cable For Mines Communication System
-
SLYWV-75-10 Leaky Feeder Cable, Mine Communication Leaky Feeder Cables With MSHA Certified
-
Leaky Feeder Cable For Metro Stations, Mines Communication Leaky Feeder Cable
Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | LMR 500 coaxial cable |
Product Description
Delivery Time:Within 2 weeks
Certification:CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
LFlexible LMR 500 Coaxial Cable, Low Loss Tinned CU Braided 50 ohm Cable For Mobile Antenna
Applications:
LMR cable is a good solution for…
Replacement of RG-8/9913 air-dielectric type cable. Earth station antenna jumper cable. Jumpers for equipment room and antenna connection. Military data links. VLF, AM and FM radio broadcast systems. Application for WLL, GPS, WiMAX, SCADA, Mobile Antennas.
Structure specification:
description | material | inches | mm |
Inner conductor | Solid BC or CCA | 0.142 | 3.61 |
dielectric | Foam PE | 0.37 | 9.4 |
Outer conductor | Aluminum tape | 0.376 | 9.55 |
Overall braid | Tinned CU or tinned CCA or as per request | 0.405 | 10.29 |
Jacket | PVC or PE | 0.500 | 12.70 |
Mechanical performance
Performance property | units | US | metric |
Bend radius | In.(mm) | 5 | 127.0 |
Tensile strength | Lb(kg) | 260 | 118.0 |
Environmental specifications
Performance property | 0F | oC |
Installation temperature range | -40/+185 | -40/+85 |
Storage temperature range | -94/+185 | -70/+85 |
Operating temperature range | -40/+185 | -40/+85 |
Electrical performance
Performance property | units | US | (metric) |
Velocity of propagation | % | 86 | |
impedance | ohms | 50 | |
capacitance | pF/ft(pF/m) | 23.6 | 77.5 |
Inner conductor resistance | Ohms/1000ft(/km) | 0.82 | 2.70 |
Outer conductor resistance | Ohms/1000ft(/km) | 1.27 | 4.20 |
Voltage withstand | Volts DC | 3000 |
Frequency (MHz) | 30 | 50 | 150 | 220 | 450 |
