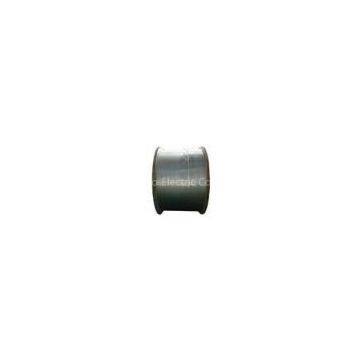

Copper Clad Aluminum Trunk Cable 412JCA, P 412JCA Trunk Cable For CATV Networks
- T/T L/C D/P D/A
- 7 days
You May Like
-
1-5/8 Helix Copper Tube RF Coaxial Cable, PE Jacket RF Feeder Cable For Metro Stations
-
Helix Wrinkle Copper Tube RF Coaxial Cable, 1-1/4 Microwave Telecom Feeder Cable
-
7/8 RF Coaxial Cable With PE Jacket, Smooth Copper Tube Underground Feeder Cable
-
7/8 Feeder Cable, Helix Copper Tube RF Coaxial Cable For Wireless Mobile Communication
-
Corrugated Copper Tape RF Coaxial Cable, RF 5/8 Feeder Cable For Wireless Communication
-
Smooth Copper Tube RF Coaxial Cable, 1/2 RF Feeder Cable For Tunnels, Military
Product Details
| Brand Name | Libo | Place of Origin | China | |
| Model Number | PⅢ 412JCA |
Product Description
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Copper Clad Aluminum Trunk Cable 412JCA, PⅢ 412JCA Trunk Cable For CATV Networks
Competitive Advantage:
The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network. To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable is available; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood. Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China. Libo cable developed the world’s first conforming seamless aluminum tube trunk cable. Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality. Libo cable is equipped with a Provincial-level Research and Development Center.Product description:
The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, it is tightly covered by solid aluminum tube. Medium density PE is used as jacket material.
|
Physical dimensions |
||
|
component |
inches |
mm |
|
Inner conductor |
0.089 |
2.26 |
|
Diameter over dielectric |
0.362 |
9.19 |
|
Diameter over outer conductor |
0.411 |
10.46 |
|
Outer conductor thickness |
0.024 |
0.61 |
|
Diameter over jacket |
0.475 |
12.07 |
|
Jacket wall thickness |
0.0315 |
0.80 |
Mechanical performance:
Minimum bending radius: 6.0 inches/15.2cm
Maximum pulling tension: 150lbs /68kgf
Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Nominal DC loop resistance@68OF: 2.57 ohms/1000ft (8.43 ohms/km)
Attenuation@ 68OF(20oC):
|
@Frequency MHZ |
dB/100ft. (MAX.) |
dB/100 meters(MAX.) |
|
5MHZ |
0.20 |
0.65 |
|
55MHZ |
0.69 |
2.26 |
|
83MHZ |
0.86 |
2.82 |
|
211MHZ |
1.41 |
4.62 |
|
250MHZ |
1.54 |
5.05 |
|
300MHZ |
1.70 |
5.57 |
|
350MHZ |
1.87 |
6.13 |
|
400MHZ |
1.97 |
6.46 |
|
450MHZ |
2.11 |
6.92 |
|
500MHZ |
2.24 |
7.34 |
|
550MHZ |
2.35 |
7.71 |
|
600MHZ |
2.47 |
8.10 |
|
750MHZ |
