Capillary Water Heater Thermostat with Copper Sensor
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Thermal International | Place of Origin | China | |
| Model Number | WKI |
Product Description
Capillary Water Heater Thermostat with Copper Sensor Details
|
Type |
Electric Water Heater Parts |
|
Place of Origin |
Guangdong, China (Mainland) |
|
Brand Name |
Thermal International |
|
Model Number |
WKI |
|
Certificates |
RoHS, CE,UL,CQC |
|
Temperature Range |
85 degree-135 degree |
|
Electric Rating |
20 A 250 V |
|
Frequency |
50/60 Hz |
|
Life Usage |
100,000 cycles |
|
Wiring Diagram |
Double Poles Single Throw |
|
Material of Capillary/Sensor |
Copper |
|
Material of Terminal |
Brass |
|
Length of Capillary/Sensor |
Approx. 400mm |
|
Reset Type |
Manual-Reset |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
2000 Piece/Pieces Negotiable for Qty less than MOQ |
|
Port: |
Any port of China |
|
Packaging Details: |
Standard: Carton Box Nonstandard: Available |
|
Delivery Time: |
Within 20-30 days after receipt of deposit |
|
Payment Terms: |
L/C,D/A,D/P,T/T, Western Union, MoneyGram |
|
Supply Ability: |
200000 Piece/Pieces per Month |
Detailed Product Description
1.Thermal Protector
2.Temp:85-135 deg C
3.Rating:20A-250V
4.DPST
5.Manual-Reset Thermal Protector for electric water heater
Thermal Protector for Electric Water Heater

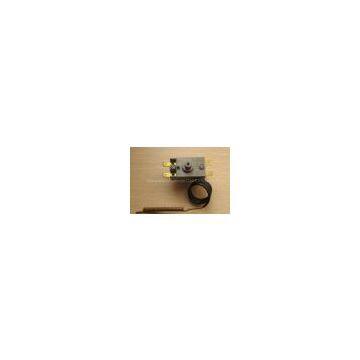

The WKI Thermal Protector shown in the picture below is a key part in the electric water heaters. It could be made to control temperature from 85 degree Celsius to 135 degree Celsius. Copper-made capillary/sensor is sensitive to the change of temperature, which responds to the action of switch accurately. The DPST contacts open on temperature rise. Noted it is a Manual-reset Thermal Protector that suits the Electric Water Heater.
Features of Thermal Protector for Electric Water Heater
- Comply with the UL, CE, RoHS, CQC,ISO regulation.
- Special design made for electric water heater
- Temperature-preset type
- Manual-reset design
- Long life usage
- Creep Action Switch
Specifications of Thermal Protector for Electric Water Heater
|
Temperature Range |
85°C ~ 135°C |
|
Length of Capillary |
Standard: 400mm |
|
Material of Capillary |
Copper |
|
Diameter of Sensing Bulb |
3mm |
|
Electric Rating |
20A-250VAC
|
|
Wiring Diagram |
Double Pole Single Throw (DPST) |
|
Material of Terminal |
Brass |
|
Size of The Nut |
1-M10 |
|
Min. Capillary Bend Radius |
5mm |
|
Temperature Rate of Change |
0.8°C/min |
There are other Capillary type Thermal Protectors available for your appliances. We will send you more technical information based on your inquiry, as soon as we get the contact from you.
