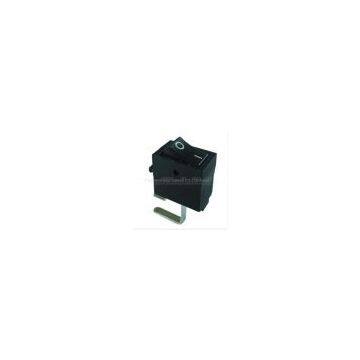

Rocker Switch with Brass Terminal,CE, VDE,UL

Rocker Switch with Brass Terminal,CE, VDE,UL

Where to use

Rocker Switch is used in water drinking appliance, motor-circle, coffee kettle, dish-washer machine, Microwave oven, water heater, stove, frying machine, sandwich machine, Soybean milk machine, washing machine, heater, hair dryer, iron, Vacuum cleaner and ect.

Packaging & Delivery

Packing Detail:  Carton and plastic bags

Delivery Detail: 15 days after we receive your remittance depending on order.

Payment Terms: L/C,D/A,D/P,T/T, Western Union, MoneyGram

Supply Ability:  50000 Piece/Pieces per Day

Rocker Switch Specifications
1 Rated voltage and current:UL:3A 125V / 250V AC　
                              VDE:3A 250V AC
                              CQC:3A 250V AC
2,Mechanical Life:30000times
3,Service Life:10000times
4,Resistance:<20mΩ
5,Insulation resistance:>1000MΩ
6,Withstand voltage:>1500V/minutes,
7,Ambient temperature:-10℃~+85℃
8,Storage Temperature:-10℃~+85℃
9,Ambient Humidity:Max.85 %
10,Operation Force:3~8N【Depending on different function】
11,Fire rating:UL94 V-2
12,Shell Material:PA66
13,Button Material:PA66
14,Contact Material: Silver Alloy
15,Terminal Material:Brass(Silver plated)
16,Terminal Temperature goes up:Max 30℃,【UL1054]
17,Terminal Solderability:Temperature no higher than350℃,less than 3seconds.

Note:

When welding, do not press terminal
18,Function
Single stage single throw:ON-OFF
Single stage double throw:ON-ON
19,Shell/ button color: All colors available.
20,Printing: According to client’s demand.
