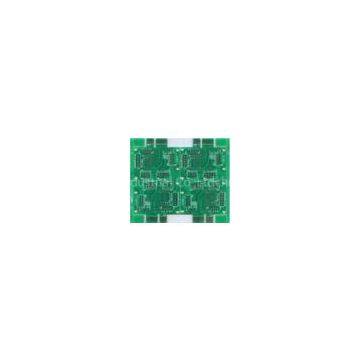

CTE Green 1 - 16 Layer HAL, ENIG Routing, Punchin Electrical Test TG PCB With Gold Finger
- T/T L/C D/P D/A
- 7 days
You May Like
-
FR4 0.5 - 3oz Copper PTH, NPTH Immersion Gold Prototype TG PCB For Radio, TV, Mobile
-
Immersion Tin HAL / ENIG Electrical Test Npth 1 - 16 Layers Tg Pcb With Electrical Test
-
1 -1 6 Layer 0.2 - 3.2mm Thickness Electrical Test Tg170 High Tg Pcb For Computer, Radio
-
HAL / ENIG Alloy 0.5 - 3oz Copper Routing, Punching Aluminum Pcb With Immersion Tin
-
1 - 10 Layers Electrical Test 0.25 - 3.0oz Copper Thickness Aluminum PCB Board For Machine
-
Gold Plating, Rosin 0.5 - 3oz Copper Low Alloyed Aluminum PCB For Radio, Machine, Led
Product Details
| Brand Name | Winnal | Place of Origin | China | |
| Model Number | CE, ROHS, UL |
Product Description
CTE?Green?1?-?16?Layer?HAL,?ENIG?Routing,?Punchin?Electrical?Test?TG?PCB?With?Gold?Finger
Description:
|
Layer |
1-16 |
|
Material |
FR4 |
|
Thickness |
0.2-3.2mm |
|
Surface?finishing |
HAL/ENIG |
|
Copper |
0.5-3oz |
|
Test |
Electrical?Test |
The glass transition temperature (Tg) is an important normative dimension for the base material that determines the temperature at which the resin matrix converts from a glassy, brittle condition into a soft, elastic one.
The Tg value of the base material sets here an upper boundary, at which the resin matrix decomposes and a subsequent delamination occurs. The Tg is thus not the value of the maximum operational temperature, but rather that which the material can endure for only a very short time. A guideline for a continuous thermal load is an operating temperature approximately 25°C below the Tg.
When the glass transition temperature (Tg) is over 170°C, it is referred to as a high Tg material. We also call it TG170 board.
High?Tg?materials?have?the?following?properties:?
·?high?glass?flow?temperature?value?(Tg)?
·?high?temperature?durability?
·?long?delamination?durability?
·?Low?Z?axis?expansion?(CTE)
Applications:
Printed circuit board can be used for all kinds of electrical products, such as computer, radio, TV, mobile, mp4, led and so on. It’s widely used in various of industries in the world. We have been pcb/pcba business for ten years and provide different customized pcb to many countries all over the world. Welcome to contact us for further news.
Specifications:
|
Product?Technical?Parameter |
|||
|
Basic?technology |
Parameter |
||
|
Single/Double?sided |
Multilayer |
||
|
Number?of?Layers |
1-2 |
4~16 |
|
|
Copper?Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base?Board?Thickness |
0.2~3.2mm |
0.6~3.2mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable?resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist? |
≤0.5% |
≤0.5% |
|
|
Insulation?resistance |
≥1011Ω |
≥1011Ω |
|
|
Test?voltage |
10-300V |
10-300V |
|
|
Finished?board?area |
560×970mm |
560×970mm |
|
|
Min.?Line?Width?and?Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper?thickness?in?hole |
≥25.0um |
≥25.0um |
|
|
Mini.?pad?diameter |
Inner?layer |
0.05mm |
|
|
Out?layer |
0.076mm |
0.076mm |
|
|
Mini.?Hole?Diameter |
0.25mm |
0.20mm |
