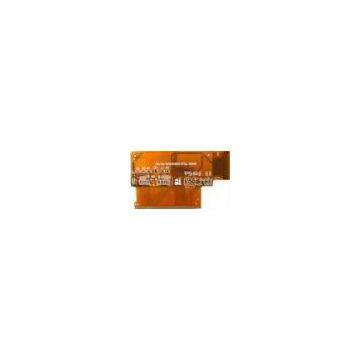

1 - 6 Layers Gold Plating, Rosin Copper Thickness Flexible PCB Board For Mobile, Led
- T/T L/C D/P D/A
- 7 days
You May Like
-
Routing, Punching HAL Lead - Free, Rosin Polyimide Flexible PCB Board With 1 - 6 Layers
-
HAL / ENIG Copper Thickness Polyimide PTH, NPTH Flexible PCB Board With Immersion Gold
-
Electrical Test 0.1-0.25mm Thickness OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper
-
HAL / ENIG 0.5 - 2oz Copper Routing, Punching Flexible PCB Board For Electrical Products
-
0.5 - 2oz Copper Electrical Test PTH, NPTH Flexible PCB Prototype With Immersion Tin
-
Yellow Polyimide1 - 6 Layers 0.1 - 0.25mm Thickness Flexible Board With Electrical Test
Product Details
| Brand Name | Winnal | Place of Origin | China | |
| Model Number | CE, ROHS, UL |
Product Description
1?-?6?Layers?Gold?Plating,?Rosin?Copper?Thickness?Flexible?PCB?Board?For?Mobile,?Led
Description:
|
Layer |
1-6 |
|
Material |
Polyimide |
|
Thickness |
0.1-0.25mm |
|
Surface?finishing |
HAL/ENIG |
|
Copper |
0.5-2oz |
|
Test |
Electrical?Test |
Applications:
Flexible board can be used for all kinds of electrical products, such as computer, mobile, led and so on. It’s widely used in various of industries in the world. We have been FPC and assembly business for ten years and provide different customized FPC to many countries all over the world. Welcome to contact us for further news.
Specifications:
|
Product?Technical?Parameter |
|||
|
Basic?technology |
Parameter |
||
|
Single/Double?sided |
Multilayer |
||
|
Number?of?Layers |
1-2 |
4~6 |
|
|
Copper?Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base?Board?Thickness |
0.1~0.3mm |
0.1~0.3mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable?resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist? |
≤0.5% |
≤0.5% |
|
|
Insulation?resistance |
≥1011Ω |
≥1011Ω |
|
|
Test?voltage |
10-300V |
10-300V |
|
|
Finished?board?area |
560×970mm |
560×970mm |
|
|
Min.?Line?Width?and?Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper?thickness?in?hole |
≥25.0um |
≥25.0um |
|
|
Mini.?pad?diameter |
Inner?layer |
0.05mm |
|
|
Out?layer |
0.076mm |
0.076mm |
|
|
Mini.?Hole?Diameter |
0.25mm |
0.20mm |
|
|
Hole?tolerance |
PTH |
±0.076mm |
±0.076mm |
|
NPTH |
±0.05mm |
±0.05mm |
|
|
Hole?location?tolerance |
±0.076mm |
±0.05mm |
|
|
profile?tolerance |
Routing |
±0.1mm |
±0.1mm |
|
Punching |
±0.13mm |
±0.13mm |
|
|
Solder?mask?bridge?ability |
≥0.1mm |
