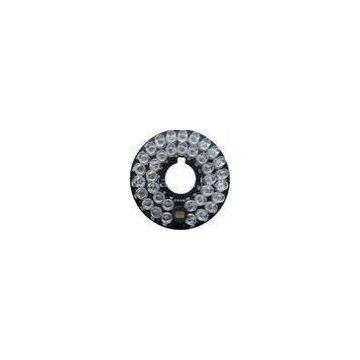

1 - 16 Layer FR4 1.6mm Thickness HAL / ENIG Led PCB Board With Electrical Test
- T/T L/C D/P D/A
- 7 days
You May Like
-
FR4 Through - Hole Gold Finger, Rosin Npth Electronic PCB Assembly With Surface - Mount
-
Electrical Test FR4 Through - Hole Copper Thickness PCB Assembly With Immersion Tin
-
0.2 - 3.2mm Thickness HAL / ENIG Punching Electronic PCB Assembly With 0.5 - 3oz Copper
-
1 - 16 Layer 0.2 - 3.2mm Thickness Routing, Punching Electronic PCB Assembly For MP4, Led
-
Through - Hole Gold Plating 1 - 16 Layer Electronic PCB Assembly With Electrical Test
-
HAL / ENIG PTH, NPTH Electrical Test Electronic Pcb Assembly For Mobile, MP4, Led
Product Details
| Brand Name | Winnal | Place of Origin | China | |
| Model Number | CE, ROHS, UL |
Product Description
1?-?16?Layer?FR4?1.6mm?Thickness?HAL?/?ENIG?Led?PCB?Board?With?Electrical?Test
Description:
|
Layer |
1-16 |
|
Material |
FR4 |
|
Thickness |
1.6mm |
|
Surface?finishing |
HAL?/?ENIG |
|
Copper |
1oz |
|
Test |
Electrical?Test |
Applications:
LED Printed circuit board are mainly used for different kinds of LED. It’s widely used in various of industries in the world such as market, advertisement, Car, Buildings and so on. We have been pcb/pcba business for ten years and provide different customized pcb to many countries all over the world. Welcome to contact us for further news.
Specifications:
|
Product?Technical?Parameter |
|||
|
Basic?technology |
Parameter |
||
|
Single/Double?sided |
Multilayer |
||
|
Number?of?Layers |
1-2 |
4~16 |
|
|
Copper?Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base?Board?Thickness |
0.2~3.2mm |
0.6~3.2mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable?resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist? |
≤0.5% |
≤0.5% |
|
|
Insulation?resistance |
≥1011Ω |
≥1011Ω |
|
|
Test?voltage |
10-300V |
10-300V |
|
|
Finished?board?area |
560×970mm |
560×970mm |
|
|
Min.?Line?Width?and?Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper?thickness?in?hole |
≥25.0um |
≥25.0um |
|
|
Mini.?pad?diameter |
Inner?layer |
0.05mm |
|
|
Out?layer |
0.076mm |
0.076mm |
|
|
Mini.?Hole?Diameter |
0.25mm |
0.20mm |
|
|
Hole?tolerance |
PTH |
±0.076mm |
±0.076mm |
|
NPTH |
±0.05mm |
±0.05mm |
|
|
Hole?location?tolerance |
±0.076mm |
±0.05mm |
|
|
profile?tolerance |
Routing |
±0.1mm |
±0.1mm |
|
Punching |
±0.13mm |
±0.13mm |
|
|
Solder?mask?bridge?ability |
≥0.1mm |
≥0.075mm |
