Home > Products > Multi-Layer PCB > FR4 PTH, NPTH Copper Thickness Immersion Gold Multi - Layer PCB For Electrical Products

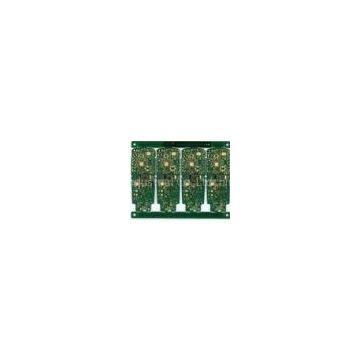

FR4 PTH, NPTH Copper Thickness Immersion Gold Multi - Layer PCB For Electrical Products
- T/T L/C D/P D/A
- 7 days
You May Like
-
0.6 - 3.2mm Thickness Routing, Punching Prototype Multi - Layer PCB With Gold Finger
-
Electrical Test Copper Thickness NPTH Multilayer Printed Circuit Boards With 4 - 16 Layers
-
0.5 - 3oz Copper HAL / ENIG FR4 Multilayer Printed Circuit Board With Electrical Test
-
Routing 0.2 - 3.2mm Thickness Electrical Test Prototype TG PCB For Electrical Products
-
CTE, FR4 HAL / ENIG Routing, Punching 0.5 - 3oz Copper TG 170 PCB With Electrical Test
-
0.2 - 3.2mm Thickness CTE Routing, Punching Custom TG PCB With Hal Lead - Free
Product Details
| Brand Name | Winnal | Place of Origin | China | |
| Model Number | CE, ROHS, UL |
Product Description
FR4?PTH,?NPTH?Copper?Thickness?Immersion?Gold?Multi?-?Layer?PCB?For?Electrical?Products
Applications:
Printed circuit board can be used for all kinds of electrical products, such as computer, radio, TV, mobile, mp4, led and so on. It’s widely used in various of industries in the world. We have been pcb/pcba business for ten years and provide different customized pcb to many countries all over the world. Welcome to contact us for further news.
Description:
|
Layer |
4-16 |
|
Material |
FR4 |
|
Thickness |
0.6-3.2mm |
|
Surface?finishing |
HAL/ENIG |
|
Copper |
0.5-3oz |
|
Test |
Electrical?Test |
Specifications:
|
Product?Technical?Parameter |
|||
|
Basic?technology |
Parameter |
||
|
Single/Double?sided |
Multilayer |
||
|
Number?of?Layers |
1-2 |
4~16 |
|
|
Copper?Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base?Board?Thickness |
0.2~3.2mm |
0.6~3.2mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable?resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist? |
≤0.5% |
≤0.5% |
|
|
Insulation?resistance |
≥1011Ω |
≥1011Ω |
|
|
Test?voltage |
10-300V |
10-300V |
|
|
Finished?board?area |
560×970mm |
560×970mm |
|
|
Min.?Line?Width?and?Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper?thickness?in?hole |
≥25.0um |
≥25.0um |
|
|
Mini.?pad?diameter |
Inner?layer |
0.05mm |
|
|
Out?layer |
0.076mm |
0.076mm |
|
|
Mini.?Hole?Diameter |
0.25mm |
0.20mm |
|
|
Hole?tolerance |
PTH |
±0.076mm |
±0.076mm |
|
NPTH |
±0.05mm |
±0.05mm |
|
|
Hole?location?tolerance |
±0.076mm |
±0.05mm |
|
|
profile?tolerance |
Routing |
±0.1mm |
±0.1mm |
|
Punching |
±0.13mm |
±0.13mm |
|
|
Solder?mask?bridge?ability |
≥0.1mm |
|
