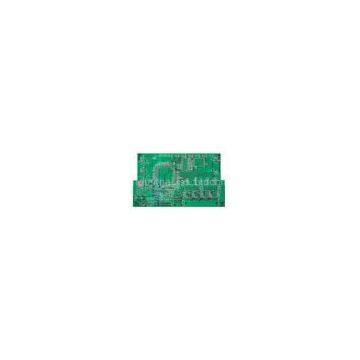

HAL / ENIG Electrical Test FR4 0.5 - 3oz Copper Custom Multi-Layer PCB With 4 - 16 Layers
- T/T L/C D/P D/A
- 7 days
You May Like
-
Red Immersion Gold 0.5 - 3oz Copper Prototype Multi - Layer PCB For Radio, TV, Mobile
-
Routing, Punching HAL Lead - Free 0.6 - 3.2mm Thickness Multi-Layer PCB For Computers
-
FR4 0.6 - 3.2mm Thickness HAL / ENIG Multilayer Circuit Board For Electrical Products
-
4 - 16 Layers PTH, NPTH Copper Thickness Multi - Layer PCB With OSP, HAL, HAL Lead - Free
-
Green PTH, NPTH 4 - 16 Layer OSP, HAL Multi - Layer PCB With 0.6 - 3.2mm Thickness
-
FR4 PTH, NPTH Copper Thickness Immersion Gold Multi - Layer PCB For Electrical Products
Product Details
| Brand Name | Winnal | Place of Origin | China | |
| Model Number | CE, ROHS, UL |
Product Description
HAL?/?ENIG?Electrical?Test?FR4?0.5?-?3oz?Copper?Custom?Multi-Layer?PCB?With?4?-?16?Layers
Description:
|
Layer |
4-16 |
|
Material |
FR4 |
|
Thickness |
0.6-3.2mm |
|
Surface?finishing |
HAL/ENIG |
|
Copper |
0.5-3oz |
|
Test |
Electrical?Test |
Applications:
Printed circuit board can be used for all kinds of electrical products, such as computer, radio, TV, mobile, mp4, led and so on. It’s widely used in various of industries in the world. We have been pcb/pcba business for ten years and provide different customized pcb to many countries all over the world. Welcome to contact us for further news.
Specifications:
|
Product?Technical?Parameter |
|||
|
Basic?technology |
Parameter |
||
|
Single/Double?sided |
Multilayer |
||
|
Number?of?Layers |
1-2 |
4~16 |
|
|
Copper?Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base?Board?Thickness |
0.2~3.2mm |
0.6~3.2mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable?resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist? |
≤0.5% |
≤0.5% |
|
|
Insulation?resistance |
≥1011Ω |
≥1011Ω |
|
|
Test?voltage |
10-300V |
10-300V |
|
|
Finished?board?area |
560×970mm |
560×970mm |
|
|
Min.?Line?Width?and?Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper?thickness?in?hole |
≥25.0um |
≥25.0um |
|
|
Mini.?pad?diameter |
Inner?layer |
0.05mm |
|
|
Out?layer |
0.076mm |
0.076mm |
|
|
Mini.?Hole?Diameter |
0.25mm |
0.20mm |
|
|
Hole?tolerance |
PTH |
±0.076mm |
±0.076mm |
|
NPTH |
±0.05mm |
±0.05mm |
|
|
Hole?location?tolerance |
±0.076mm |
±0.05mm |
|
|
profile?tolerance |
Routing |
±0.1mm |
±0.1mm |
|
Punching |
±0.13mm |
±0.13mm |
|
|
Solder?mask?bridge?ability |
≥0.1mm |
