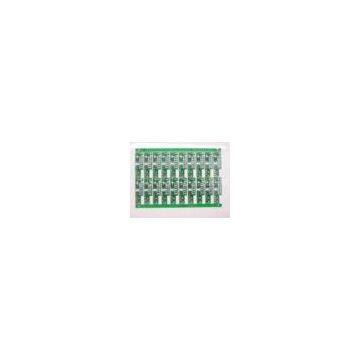

FR4 Custom 0.25 - 3.0oz Copper Thickness Led Printed Circuit Board With Electrical Test
- T/T L/C D/P D/A
- 7 days
You May Like
-
White Routing, Punching 1.6mm Thickness Led Printed Circuit Board With Immersion Tin
-
HAL / ENIG PTH, NPTH Gold Finger Prototype Led Printed Circuit Board For Buildings
-
Bright Green 1 - 16 Layer 1oz Copper Led Printed Circuit Board For Market, Advertisement
-
1 - 16 Layer FR4 1.6mm Thickness HAL / ENIG Led PCB Board With Electrical Test
-
FR4 Through - Hole Gold Finger, Rosin Npth Electronic PCB Assembly With Surface - Mount
-
Electrical Test FR4 Through - Hole Copper Thickness PCB Assembly With Immersion Tin
Product Details
| Brand Name | Winnal | Place of Origin | China | |
| Model Number | CE, ROHS, UL |
Product Description
FR4?Custom?0.25?-?3.0oz?Copper?Thickness?Led?Printed?Circuit?Board?With?Electrical?Test
Description:
|
Layer |
1-16 |
|
Material |
FR4 |
|
Thickness |
1.6mm |
|
Surface?finishing |
HAL?/?ENIG |
|
Copper |
1oz |
|
Test |
Electrical?Test |
Applications:
LED Printed circuit board are mainly used for different kinds of LED. It’s widely used in various of industries in the world such as market, advertisement, Car, Buildings and so on. We have been pcb/pcba business for ten years and provide different customized pcb to many countries all over the world. Welcome to contact us for further news.
Specifications:
|
Product?Technical?Parameter |
|||
|
Basic?technology |
Parameter |
||
|
Single/Double?sided |
Multilayer |
||
|
Number?of?Layers |
1-2 |
4~16 |
|
|
Copper?Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base?Board?Thickness |
0.2~3.2mm |
0.6~3.2mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable?resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist? |
≤0.5% |
≤0.5% |
|
|
Insulation?resistance |
≥1011Ω |
≥1011Ω |
|
|
Test?voltage |
10-300V |
10-300V |
|
|
Finished?board?area |
560×970mm |
560×970mm |
|
|
Min.?Line?Width?and?Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper?thickness?in?hole |
≥25.0um |
≥25.0um |
|
|
Mini.?pad?diameter |
Inner?layer |
0.05mm |
|
|
Out?layer |
0.076mm |
0.076mm |
|
|
Mini.?Hole?Diameter |
0.25mm |
0.20mm |
|
|
Hole?tolerance |
PTH |
±0.076mm |
±0.076mm |
|
NPTH |
±0.05mm |
±0.05mm |
|
|
Hole?location?tolerance |
±0.076mm |
±0.05mm |
|
|
profile?tolerance |
Routing |
±0.1mm |
±0.1mm |
|
Punching |
±0.13mm |
±0.13mm |
|
|
Solder?mask?bridge?ability |
≥0.1mm |
