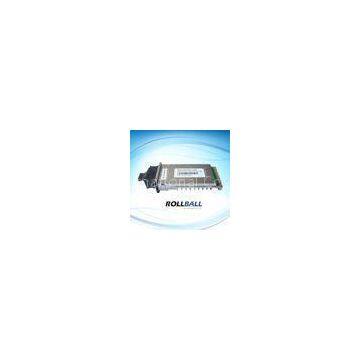

TRx850nm 300meters 10GBASE-SR Optical 10G Module With X2 MSA Rev2.0b, 70-PIN Connector

TR x850nm 300meters 10GBASE-SR Optical 10G Module With X2 MSA Rev2.0b, 70-PIN Connector

Features

l?Compatible?with?X2?MSA?Rev2.0b

l?Support?of?IEEE?802.3ae?10GBASE-SR?at?10.3125Gbps

l?Transmission?Distance?up?to?300m?(MMF)

l?Vertical?Cavity?Surface?Emitting?Laser?at?850nm

l?SC?Duplex?Optical?Connector?

l?Hot?Pluggable?70-PIN?Connector?with?XAUI?Electrical?Interface

l?Management?and?control?via?MDIO?2-wire?interface?

l?Power?Supply?:+3.3V,?APS(+1.2V)

l?Diagnostic?Optics?Monitoring?

l?Temperature?Range:?0~?70?°C

l?ROHS?Compatible?

Applications

l?10GE?Ethernet?switches?and?routers

l?10GE?Core-routers

l?10GE?Storage

l?Other?10Gbps?Ethernet?Transmission?System?

Product?Description

The?RX2-85192-SRD?is?a?highly?integrated,Serial?optical?transponder?module?for?high-speed,?

10Gbit/s?data?transmission?applications.?4×3.125Gbps?Ethernet?Signal?Input?by?XAUI?Interface.An?integrated

?Coder?/?Decoder?and?multiplexer?/?demultiplexer?(SERDES:?Serializer?/?Deserializer).?Designing?for?300m?

Transmission?with?a?vertical?cavity?surface?emitting?laser?(VCSEL).?Digital?diagnostics?functions?are?available

?via?a?2-wire?serial?interface,?as?specified?in?the?XENPAK?MSA?3.0.

Specification:

Transmitter?Characteristics?

Receiver??Characteristics
