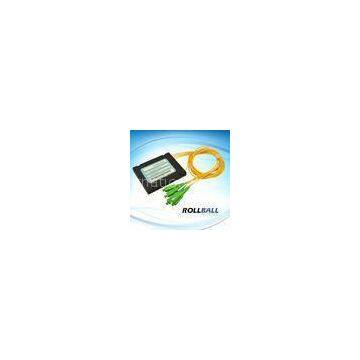

1260 - 1620 nm CWDM Fiber Optic Components, Passive Optical Multiplexer With ABS Box

1260 - 1620 nm CWDM Fiber Optic Components, Passive Optical Multiplexer With ABS Box

Description

Passive Optical Multiplexer CWDM 1xN Mux-Demux Module is a type of optical wavelength management device that are based on proven ultra low-loss thin-film filter (TFF) technology. It features small size, high reliability, high extensibility, simultaneous transmission of multi-wavelength. CWDM has gained prevalence in multi-wavelength digital transport architectures because it enables the use of very low cost uncooled distributed feedback (DFB) laser transmitters. Moreover, their powering requirements are reduced and reliability is increased.

ROLLBALL provides whole series of 1xN CWDM products that are tailored for specific applications. All products meet GR-1209-CORE, GR-1221-CORE and ITU-T G.694.2 requirements.

2.??Features

l?Low?Insertion?Loss

l?High?Isolation

l?Low?PDL

l?Compact?Design

l?Good?channel-to-channel?uniformity

l?Wide?Operating?Wavelength:

???????????? From?1260nm?to?1620nm

l?Wide?Operating?Temperature:?

????????????? From?-40℃?to?85℃

l?High?Reliability?and?Stability

3.??Applications

l?CWDM?System

l?PON?Networks

l?CATV?Links

4.??Compliance

l?Telcordia?GR-1209-CORE

l?Telcordia?GR-1221-CORE

l?RoHS

5.?Specifications

Table?1?–?1×N?CWDM?Mux/Demux?Module

Notes:

1.??Specified?without?connectors.

2.??Add?an?additional?0.2dB?loss?per?connector.

Table?2?–NCH?CWDM?Optical?Add/Drop?Module
