Home > Products > SFP Transceiver Module > TR x 1550nm 80KM 155M SFP Transceiver Module For SONET OC-3 IR1, LR1, LR2 Optical Links

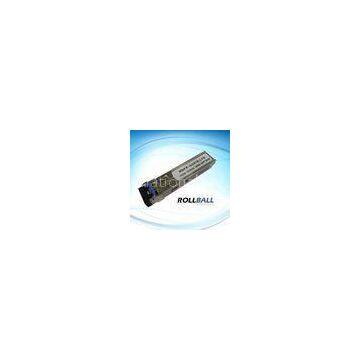

TR x 1550nm 80KM 155M SFP Transceiver Module For SONET OC-3 IR1, LR1, LR2 Optical Links
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
1.25G TRx 1310nm 40km Optical SFP Transceiver Module For Gigabit Ethernet, Fiber Channel
-
155M TR x 1310nm 40KM SFP Transceiver Modules For SDH STM-1, S-1.1, L-1.1, L-1.2
-
155Mbps TR x 1310nm FP Laser PIN Photodetector 20KM SFP Fiber Module For Optical Links
-
1.25Gbps / 1.063Gbps TRx1550nm DFB Laser SFP Transceiver Module For 120km Transmission
-
T x 1310nm - R x 1550nm 20km Dual Data - Rate Bi-Directional SFP Optical Module
-
TR x1550nm 80km 1.25Gbps SFP Ethernet Module With SMF For Fiber Channel
Product Details
| Brand Name | Rollball | Place of Origin | China | |
| Model Number | RSFP-0355S-L8 |
Product Description
Certification:FCC, CE, RoHS
TR x?1550nm 80KM 155M? SFP Transceiver Module For SONET OC-3 IR1, LR1, LR2 Optical Links
Features
l?Up?to?155Mbps?data-rate
l?1550nm?DFB?laser?and?PIN?photodetector?for?80km?transmission
l?Compliant?with?SFP?MSA?and?SFF-8472?with?duplex?LC?receptacle
?????? l?Digital?Diagnostic?Monitoring: Internal?Calibration?or?External?Calibration
l?Compatible?with?RoHS
l?+3.3V?single?power?supply
l?Operating?case?temperature:
????????????? Standard?:??0?to?+70°C
????????????? Extended?:?-40?to?+85°C?
Applications
l?SDH?STM-1,?S-1.1,L-1.1,?L-1.2
l?SONET?OC-3?IR1,LR1,LR2
l?Other?optical?links
Description
The?SFP?transceivers?are?high?performance,?cost?effective?modules?supporting?data-rate?of?155Mbps?and?
80km transmission?distance?with?SMF.
The?transceiver?consists?of?three?sections:?a?DFB?laser?transmitter,?a?PIN?photodiode?integrated?with?a?trans-impedance?preamplifier?(TIA)?and?MCU?control?unit.?All?modules?satisfy?class?I?laser?safety?requirements.
The?transceivers?are?compatible?with?SFP?Multi-Source?Agreement?(MSA)?and?SFF-8472.?For?further?
information,?please?refer?to?SFP?MSA.
Specification:
Optical?and?Electrical?Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
|
Transmitter |
|||||||
|
Centre?Wavelength |
λc |
1520 |
1550 |
1580 |
nm |
||
|
Spectral?Width?(-20dB) |
?λ |
1 |
nm |
||||
|
Side?Mode?Suppression?Ratio |
SMSR |
30 |
dB |
||||
|
Average?Output?Power |
Pout |
-5 |
0 |
dBm |
1 |
||
|
Extinction?Ratio |
ER |
9 |
dB |
||||
|
Data?Input?Swing?Differential |
VIN |
400 |
1800 |
mV |
2 |
||
|
Input?Differential?Impedance |
ZIN |
90 |
100 |
110 |
Ω |
||
|
TX?Disable |
Disable |
2.0 |
Vcc |
V |
|||
|
Enable |
0 |
0.8 |
V |
||||
|
TX?Fault |
