Home > Products > Fiber Optic Patch Cord > Customized Low Insertion Loss 0.2dB Simplex / Duplex / Multi-fiber Optic Patch Cord ST
Customized Low Insertion Loss 0.2dB Simplex / Duplex / Multi-fiber Optic Patch Cord ST
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customized Environmentally Stable Fiber Optical Splitter FBT 1* N Box With Rack Mount
-
Low Excess loss 1310, 1490,1550nm FBT 1 * N Module Fiber Optic Splitter With ABS Box,
-
Low Excess Loss 0.1dB, 1 / 2 * N FBT Fiber Optic Splitter ( Bare ) With Steel Tube
-
Rack Mount Planar Lightwave Circuit Fiber Optic PLC Splitter 1 * N Box Wide Wavelength
-
GR-1209-CORE / GR-1221-CORE High Stability 1* N PLC Bare Fiber Optic Cable Splitters
-
Low PDL 1260 - 1650nm Fiber Optic Splitter PLC 1 * N Module With ABS Box For FTTX / PON
Product Details
| Brand Name | Rollball | Place of Origin | China | |
| Model Number | RB-VM16 |
Product Description
Certification:RoHS

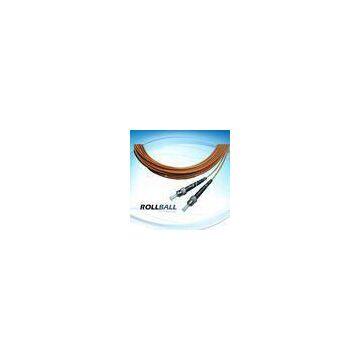

Customized Low Insertion Loss≤ 0.2dB Simplex / Duplex / Multi-fiber Optic Patch Cord ST
Product?Description?
ST?optical?fiber?patch?cord,?Precise?connector,?Customized?length,?Excellent?mechanical?capability,?insertion?
loss<0.2dB,?Good?durability?and?exchangeability,?Compliant?with?Telcordia?GR-326-CORE,?TIA/EIA?and?IEC?
standard.?
?Application:
1.?Local?Area?Networks(LANS)
2.?Data?processing?networks
3.?Instrument
4.?Premise?installations.
Feature:
1.?Low?insertion?loss?and?back?reflection?loss
2.?Good?echangeability
3.?Good?Durability
4.?High?temperature?stability.
5.?Standard:?Telcordia?GR-326-CORE
?Specification:
|
Mode |
SM |
MM |
|
Polish |
UPC |
PC |
|
Insertion?Loss |
Typical?≤0.2dB Maximum?≤0.3dB |
≤0.25dB |
|
Return?Loss |
≥50dB |
≥35dB |
|
Interchangeability |
≤0.2dB |
|
|
Repeatability |
≤0.1dB |
|
|
Durability |
≤0.2dB?(1000?times) |
|
|
Vibration |
≤0.2dB?(550Hz??1.5mm) |
|
|
Tensile?Strength |
>?10kg |
|
|
Temperature |
≤0.2dB?(-40+85?sustain?100?hours) |
|
|
Humidity |
≤0.2dB??(+25+65?93?R.H.100?hours) |
Ordering?options:
|
Boot?(cable?size) |
Boot?Color |
Fiber?Type |
Cable?number |
Length |
|
0.9mm 2.0mm 3.0mm |
Black Green Brown |
9/125um?SM 50/125um?MM 62.5/125um?MM OM3 OM4 |
Simplex Duplex Multi-fiber |
Customized |
