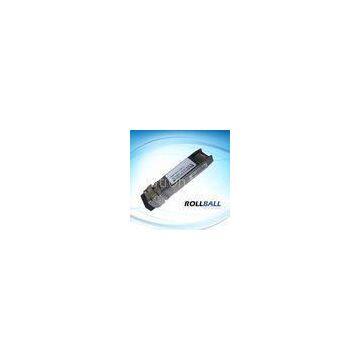

1.5W 3.3V TR x 1550nm 40KM SFP + ER Transceiver Optical 10G Module For 10GBASE-ER / EW
Negotiable
/ Kilogram
1 Kilogram(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
TR x 1310nm 10KM SFP+ LR Optical Transceiver 10G Module For 10GBASE-LR / 10GBASE-LW
-
TR x 850nm 300meters SFP + SR 10G Optical Transceiver Module Electrical Interface
-
4W TRx1550nm 40KM 10G Fiber Optical Transceiver Module X2 MSA, ER 40km
-
TRx1310nm DFB Laser 10KM Optical Transceiver 10G Module X 2 LR For Switches, Routers
-
TRx850nm 300meters 10GBASE-SR Optical 10G Module With X2 MSA Rev2.0b, 70-PIN Connector
-
TRx1550nm 40KM Hot Z-Pluggable SC-Duplex 10Gb/s Optical Module XENPAK ER
Product Details
| Brand Name | Rollball | Place of Origin | China | |
| Model Number | RSFPP-55192-ERD |
Product Description
Certification:FCC, CE, RoHS
1.5W? 3.3V TR?x 1550nm 40KM? SFP +? ER Transceiver 10GB Optical Module For 10GBASE-ER / EW
Features
1.Compliant with SFF-8413 and IEE802.3ae
2.Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates
3.Cooled EML transmitter and PIN receiver?
length up to 40km?
5.Low Power Dissipation 1.5W Maximum
6.-5oC to 70oC Operating Case Temperature
7.Single 3.3V power supply
8.Diagnostic Performance Monitoring of module temperature, supply?
9.Voltages, laser bias current, transmit optical power, receive optical power?
10.RoHS compliant and lead free
Applications
10GBASE-ER/EW (with/without FEC)
10G Fiber Channel (with/without FEC)
Description
Rollball SFP+ER Transceiver is designed for 10GBASE-ER/EW, and 8.5G/10G Fiber- Channel applications.?
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Gigalight SFP+ER Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Specification:
?Transmitter Specifications – Optical
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Center?Wavelength |
lc? |
1530 |
1565 |
pm |
|
|
Optical?Average?Power |
Po |
-3 |
- |
+3 |
dBm |
|
Optical?OMA?Power |
Pom |
-2.1 |
dBm |
||
|
Side?Mode?Suppression?Ratio |
SMSR |
30 |
- |
- |
dB |
|
Optical?Transmit?Power?(disabled) |
PTX_DISABLE |
- |
- |
-30 |
dBm |
|
Extinction?Ratio |
ER |
6 |
- |
dB |
|
|
RIN21OMA?[1] |
-128 |
dB/Hz |
|||
|
Optical?Return?Loss?Tolerance |
21 |
dB |
Notes:
[1]?RIN?measurement?is?made?with?a?return?loss?at?21?dB.
?Receiver?Specifications?–?Optical
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Input?Operating?Wavelength |
λ |
1530 |
- |
