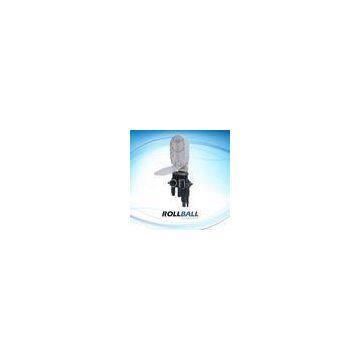

495 * 220 mm 120 Cores Dome Fiber Optic Splice Closure With 5 In / Outlet Port

495 * 220 mm 120 Cores Dome Fiber Optic Splice Closure With 5 In / Outlet Port

Product Description

Fiber Optic Splice Closur- FOST-VT0047, Dome type, Use the High-strength engineering plastic PC material, Outside Dimension 495mm x 220mm(H x D), 5 in/out let port, Max 120 cores for 12cores fiber tray,? Heat Shrinkable seal tape sealing, Accessories like pressure-testing valve, eartching deriving device, braching clip, heat shrinkable fixing sleeve, and buffer tube for bunchy fiber, 1pcs metal hoop is on client’s option.

Specification:

1. Outside dimension (height x diameter): 495mm x 220mm

2. FOSC-VT0047 is provided with 5 inlet/outlet ports, Among these ports, 4 small inlet/outlet ports suite for single fiber cable with max diameter 20mm; and 1 inlet/outlet mass port units for 1pcs fiber cable with max diameter 35mm, or 3pcs fiber cables with max diameter 25mm, or many smaller fibers at the same time. The amount of heat shrinkable fixing sleeve is additionally ordered to the customer’s actual need.

3. The installation accessories provided with the FOSC: 1 pieces of special wrenches, aluminum-foil paper, earthing wire, nylon tie, labeling paper and desiccant.

4. Accessories for customs’ selections: pressure-testing valve, eartching deriving device, braching clip, heat shrinkable fixing sleeve, and buffer tube for bunchy fiber, 1pcs metal hoop.

5. The FOSC base is proivded with an oval inlet/outlet ports, which can accommodate 2pcs of fiber cable with max diameter 21mm simultaneously. While staight-through fiber cable is for braching application, fiber uncut are for staight-through after being fixed and winded; and fibers cut off are for branching after fusion splicing with fibers of other branching fiber cable. The above method save installing time and also improve telecommunication quality.

Order Information:
