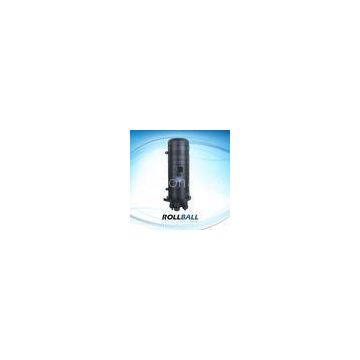

530 * 205 mm Dome 96 Cores Fiber Optic Splice Closure With 4 In-Outlet Port

530 * 205 mm Dome 96 Cores Fiber Optic Splice Closure With 4 In-Outlet Port

Product Description

Fiber Optic Splice Closure-FOST-VM0118, Use the High-strength engineering plastic PC material, Outside Dimension 530mm x 205mm(H x D), 4 in/out let port, Max 96 cores for 12cores fiber tray,? Mechanical seal, Accessories like pressure-testing valve, eartching deriving device and buffer tube for bunchy fiber, 1pcs metal hoop is on client’s option.

Specification:

1. Outside dimension (height x diameter): 530mm x 205mm

2. FOSC-VM0118 is provided with 4 inlet/outlet ports? suit for single fiber cable with max diameter 21mm, 16mm and 21mm elastic seal rings can be both installed(remark: 16mm elastic seal rings can shrink to 8.5mm; 21mm elastic seal rings can shrinks to 13mm) in all inlet/outlet ports. The inlet/outlet ports could be decided according to quantity of fiber cables to be actually installed, then the corresponding port plugs should be taken out. Max 4 pieces of fiber cable can be inserted.(While inserting fiber cable, please choose corresponding plastic gasket)

3. The installation accessories provided with the FOSC: 2 pieces of special wrenches, earthing wire, nylon tie, labeling paper, desiccant, 4pcs of elastic ring with internal diameter 16mm. 4pcs 21mm elastic seal rings; for plastic gaskets with internal diameter 10.6mm, 12.5mm, 14mm, and 16.5mm, 18mm, 20mm, 22mm, 4pcs each kind, 4pcs changeable port gaskets inside fixing base of fiber cable.

4. Accessories for customs’ selections: pressure-testing valve, eartching deriving device and buffer tube for bunchy fiber, 1pcs metal hoop.

Order Information:
?
