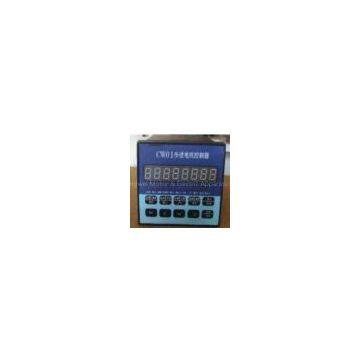

8 Digital display Single Shaft Stepper Motor Controllers

8 Digital display Single Shaft Stepper Motor Controllers

1, Characteristic of System
?
Control Shaft No.: single shaft
Dictate characteristic: programmable (various complicated operation can be realized: positioning control and non-positioning control)
Max output frequency: 40KHz (fit for controlling subdivision drive)

Resolving power of output frequency: 1Hz

programmable items: max 99 items

Input point: 6 (photoelectricity insulation )

Output point 3 (photoelectricity insulation)
-7999999 ～ +7999999 ；?
?
Once continuous displacement range: -7999999 ～ +7999999

Working status: automatic running state, manual running state, program editing state, parameter setting state

Ascent and descent speed curve: 2 (optimized)

Display function digit: 8 nixie tube display, manual/automatic display, running/stop display, step No./digital value/ program display, edit program, parameter display, input/output display, CP impulse and direction display;

Automatic running function: programmable , start-up and stop of the automatic running can be controlled through the panel keystroke and accumulator added on the terminal;

Manual running function: adjustable position (manual inching speed and step no. can be set)

Parameter setting function: start-up frequency, ascent and descent speed curve, opposite clearance, manual length, manual speed, interruption leaped line no. and zero-return speed can be set.

Program editing function: program can be freely inserted, deleted and modified with the function of leaping line no., zero-judge of data, judge function of too long or too short sentence no.

Zero-return function: automatically return to zero point with double direction

Program dictate: 14

Outer operation function: outer interruption operation can be carried out with the addition of switch on A operation and B operation terminal through parameter setting and programme;

Power supply: AC220V (error of power supply is not more than ±15 ％ ) 72×72×120 ( mm )

Overall dimension: 72× 72× 120 ( mm )
?
2, Front panel drawing
Front panel drawing includes
1 . 8 Digital display
2 . 6 input state indicator light
3 . 3 output state indicator light
4 . CP impulse signal indicator light
5 . DIR direction accumulator indicator light
6 . Keystroke: there are 10 keystrokes, most of them are multiple keystrokes which have different functions in different states. In the following explanation, we only choose one of the functions to show the keystrokes.
