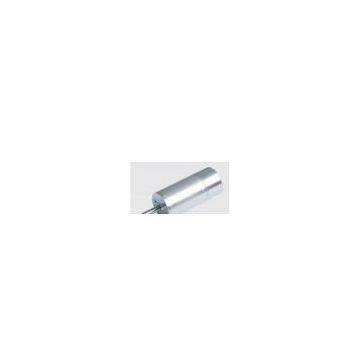

Delta 500V 24BLDC DC Brushless Motors
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | CW | Place of Origin | China | |
| Model Number | 24 BLDC SERIES |
Product Description
Certification:CE,ROHS,ISO9000,SGS
Delta 500V 24BLDC DC Brushless Motors
General Specifications
Item?? ?Specification
Winding type ?? ?Delta
Shaft run out ?? ?0.025mm
Radial play ?? ?0.06mm@450g
End play ?? ?0.08mm@450g
Insulation class ?? ?Class B
Dielectric Strength ?? ?500VDC for one minute
Insulation resistance ?? ?100MΩMin.500VDC
Electric Connecion
|
Lead?NO.? |
Lead?Color? |
Lead?Gauge |
Function? |
DESCRIPTION |
|
1 |
Red |
UL1007/26AWG |
VCC |
SUPPLY?VOLTAGE? |
|
2 |
Black |
GND |
GROUND |
|
|
3 |
Orange |
UL1007/28AWG |
PHASE?U? |
|
|
4 |
Green |
PHASE?V? |
||
|
5 |
Brown |
PHASE?W? |
Technique Specification
|
Model?No.? |
No.of?Phase? |
Rated?Voltage? |
Rated?Speed? |
Mass |
Body?length? |
Rated?Power? |
|
VDC |
rpm |
Kg |
mm |
W |
||
|
BL24-001 |
3 |
24 |
2800 |
0.08 |
53 |
2.5 |
|
BL24-002 |
3 |
24 |
5000 |
0.08 |
53 |
5 |
|
BL24-003 |
3 |
24 |
4000 |
0.08 |
53 |
3.6 |
|
BL24-004 |
3 |
24 |
3000 |
0.08 |
53 |
1.5 |
Dimensions diagram
