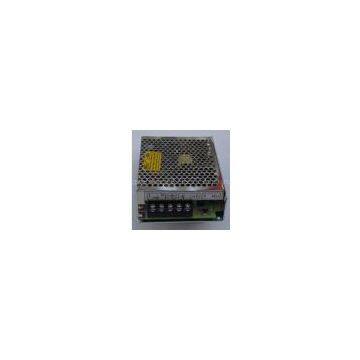

Power Supply Single Output 35W (CE,RoHS)

Index Type

S-35-5

S-35-12

S-35-15

S-35-24

DCVoltage

5V

12V

15V

24V

Voltage Tolerance

?à2%

?à1%

?à1%

?à1%

Rated Current

7A

3A

2.4A

1.51A

CurrentRange

0-7A

0-3A

0-2.4A

0-1.5A

Ripple&Noise(Max.)

75mVp-p

100mVp-p

100mVp-p

100mVp-p

Line Regulation

?à0.5%

?à0.5%

?à0.5%

?à0.5%

Load Regulation

?à1%

?à0.5%

?à0.5%

?à0.5%

Rated Power

35W

36W

36W

36W

Efficiency

70%

76%

78%

78%

Voltage Adjust Range

+10 -5%

?à10%

?à10%

?à10%

VoltageRange

85??132VAC/170-264VACauto switch47??63Hz;240??370VDC

AC Current

0.8A/115V 0.45A/230V

Inrush Current(Max.)

cold start current??18A/115V 36A/230V

Leakage Current

<0.5mA/240VAC

Overload Protection

105%??150%TYPE:Current limitation??auto recovery

Over-voltage Protection

......................

Over-temperature Protection

......................

Temp.Coefficient

?à0.03%/??(0??50??)

Setup.Rise, Hold Time

200ms, 100ms, 30ms

Vibration

10??500Hz, 2G 10min, /11cycle, 60min, each axes

Withstand Voltage

I/P-O/P:3KVACI/P-FG:1.5KVACI/P-FG:0.5KVAC

Isolated Resistor

I/P-O/P, I/P-FG, I/P-FG:500VDC/100M|?

Working Temp.Humidity

-10????+60??(REFER TO CHARACTER CURVE), 20%??90RH

Storage Temp.Humidity

-20????+85??, 10%??95%RH

Dimension

129?á98?á38mm
