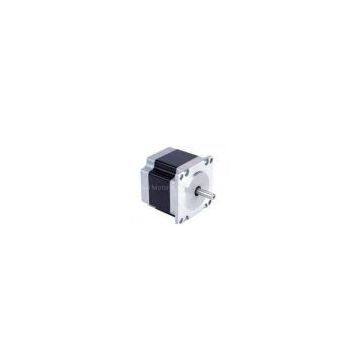

1.257mm NEMA23 3 phase Hybrid Stepper Motor
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | CW | Place of Origin | China | |
Product Description
Certification:CE,ROHS,ISO9000,SGS
1.2°57mm NEMA23 3?phase?Hybrid?Stepper?Motor
Genaral?Specification:
Step?Angle???-------------------??1.8°±5°
Temperature?Rise?-------------???80℃max
Ambient?Temperature?--------??-20℃~+50℃
Insulation?Resistance---------??100?MΩ?Min.?, 500VDC
Dielectric?Strength:?------------???500VAC?for?1minute
Shaft?Radial?Play?---------------???0.02Max.?(450g-load)
Shaft?Axial?Play?-----------------???0.08Max.?(450g-load)
Max.?radial?force-----------------???75N?(20mm?from?the?flange)
Max.?axial?force-------------------??15N
Electrical?Specification:
|
Model?No. |
Step?Angle |
Motor?Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding?Torque |
Detent?Torque |
Rotor?Inertia |
Weight |
|
(?°) |
(L)mm |
A |
Ω |
mH |
kg.cm |
g.cm |
g.cm |
Kg |
|
|
57H3P42-001 |
1.2 |
42 |
5.2 |
1.3 |
1.4 |
4.5 |
210 |
110 |
0.45 |
|
57H3P56-001 |
1.2 |
56 |
5.6 |
0.7 |
1.7 |
9.0 |
400 |
300 |
0.75 |
|
57H3P78-001 |
1.2 |
78 |
5.8 |
1.05 |
2.4 |
15 |
680 |
480 |
1.01 |
*We?can?produce?it?according?your?requests.
Dimensions:
(Unit=mm)
Wiring?Diagram:
