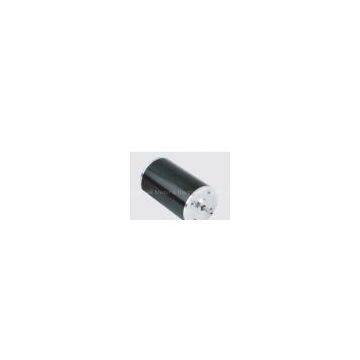

36BLDC Motor DC Brushless Motor
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | CW | Place of Origin | China | |
| Model Number | 36 BLDC SERIES |
Product Description
Certification:CE,ROHS,ISO9000,SGS
36BLDC Motor DC Brushless Motor
General Specifications
Item?? ?Specification
Winding type ?? ?Delta
Hall effect angle ?? ?120degree electriacl angle
Shaft run out ?? ?0.025mm
Radial play ?? ?0.06mm@450g
End play ?? ?0.08mm@450g
Max.radial force ?? ?28N@20mm from the flange
Max.axial force ?? ?10N
Insulation class ?? ?Class B
Dielectric Strength ?? ?500VDC for one minute
Insulation resistance ?? ?100MΩMin.500VDC
Electric Connecion
|
Lead?NO.? |
Lead?Color? |
Lead?Gauge |
Function? |
DESCRIPTION |
|
1 |
Red |
UL1007/26AWG |
VCC |
SUPPLY?VOLTAGE?FOR?HALL?SENSORS? |
|
2 |
Black |
GND |
GROUND?FOR?HALL?SENSORS? |
|
|
3 |
Yellow |
HALL?1A |
||
|
4 |
Blue |
HALL?B? |
||
|
5 |
White |
HALL?C |
||
|
6 |
Orange |
UL1007/26AWG |
PHASE?U? |
|
|
7 |
Green |
PHASE?V? |
||
|
8 |
Brown |
PHASE?W |
Technique?Specification
|
Model?No.? |
No.of?Phase? |
Rated?Voltage? |
Rated?Speed? |
Rated?Torque? |
Rated?Power? |
Mass |
Body?length? |
|
VDC |
rpm |
g.cm |
W |
Kg |
mm |
||
|
BL36-001 |
3 |
12 |
4000 |
120? |
5 |
0.15 |
40 |
|
BL36-002 |
3 |
24 |
5000 |
190 |
10 |
0.15 |
40 |
|
BL36-003 |
3 |
12 |
6000 |
120 |
8 |
0.18 |
50 |
|
BL36-004 |
3 |
24 |
6000 |
230 |
15 |
0.18 |
50 |
|
BL36-005 |
3 |
12 |
8000 |
240 |
20 |
0.22 |
60 |
|
BL36-006 |
