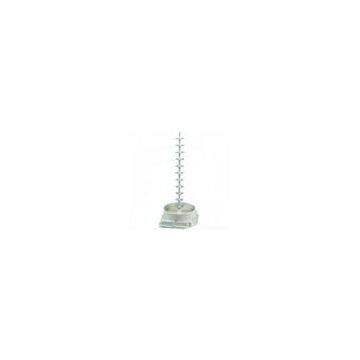

MMDS Antenna Integrated with Downconverter
USD $25 - $25
/ Set
1 Set(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Jiehao | Place of Origin | China | |
| Model Number | ET280 |
Product Description
MMDS Antenna Integrated with Downconverter
Input Frequency: 2500 to 2700MHz
L.O. Frequency:1838,1998,2030,2033,2278,2065MHz
MMDS Antenna Integrated with Downconverter
Good prices with high performances
Technical Specifications
1.Input Frequency:2500 to 2700MHz optional
2.Noise Figure:1.4dB@36dB
3.Image Rejection:≥50dB
4.VSWR:1.5:1
5.If Rejection:≥80dB
6.PCS Rejection:≥100dB
7.WCS Rejection:≥50dB
8.3 Order Intermodulatio:≤-50dB
9.Conversion Gain:36dB±1.5dB
10.L.O.Leakage Antenna Port:≤-85dBm
11.L.O.Leakage IF-port:≤-50dBm
12.L.O Phase Noise:-93dBc@10KHz offset
13.Output P1dB:+14dBm(typical)
14.Gain Flatness Over Entire Range:≤±1.5dB
15.Gain Flatness:≤0.2dB/CHANNEL
16.IF Output Impedance:75ohms
17.DC Current Consumption:14v-24v
18.DC Input Voltage:14v-24v
19.Spurious in IF Band:≤-100dBm
20.L.O. Frequency:1838,1998,,2030,2033,2278,2065MHz21.L.O.Stability:≤±30KHz
22.Operating Temperature:-40°C to +70°C
23.Input Type:Integrated Dipole Antenna
24.Storage Temperature:-40 to +80 degree Celsius
25.Relative Humidity:0% to 95%
