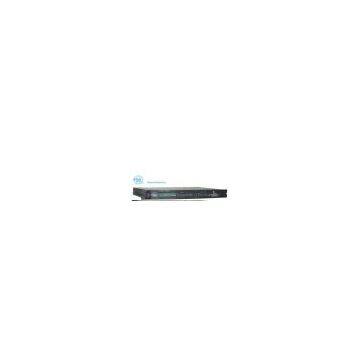

Two Separate Outputs Multiplexer

Brand Name	Jiehao		Place of Origin	China
Model Number	JXDH-6102

Detailed Product Description

Two Separate Outputs Multiplexer
1. Multiplexing SPTS and MPTS code stream.
2. Support scrambled signal transmit free

Two Separate Outputs Multiplexer

Outline:

JXDH-6102 multiplexer is a digital broadcasting TV system TS stream re-multiplexer. JXDH-6102 multiplexer combines several single-programs or multiple-programs, which are compressed, coded, and multiplexed according to customer request by head-end, into single transport stream. Besides, it is also able to interpolate EPG (Electronic Program Guide), CA (Conditional Access) and digital broadcasting etc. Maximally, it can synchronal multiplex 8 route input code streams, and support ASI interface. The code rate of input code stream is maximally up to 270Mbps, while code rate of four separate outputs code stream is maximally up to 155Mbps. Through auxiliary data input channel, Its dimension is standard 1U case. By watching the LCD display on the front panel, user can finish the setting of auto-running of this device.

Features:
Complying with ISO13818 standard.
Multiplexing SPTS and MPTS code stream.
Support 8 single signal input
2 separate output
support scrambled signal transmit free
Draw out PSI/SI from any channel
Can point 256 PID in each channel
Input at most 30 program each channel, and 29 output
redefine PAT,PMT and other SI/PSI
Support PCR adjusting and PID re-reflection
Have the function of insert and reflection of SDT/NIT
Able to connect independent scrambler for scrambling to specified program or service.
Generating SPI/SI information
Support PCR adjusting and PID re-reflection
Output data rate 0-155Mbps,188 byte format
Each input support 270Mbps data rate, total 8 input rate is 576Mbps
High precision PCR revise, usually holding 20-60ns
MPEG2 program delay less than 100μs
PID filtration/PID redefine function. User can delete, add, revise program even the program name, PID or serials No. easily.
Chinese and English LCD display
Ethernet interface10/100M, long-distance control multiplexer via PC
Have the function of parameter memory
Have the function of PSI auto-built.
High reliability design, stable in running
Alarm display
Support network upgrading
